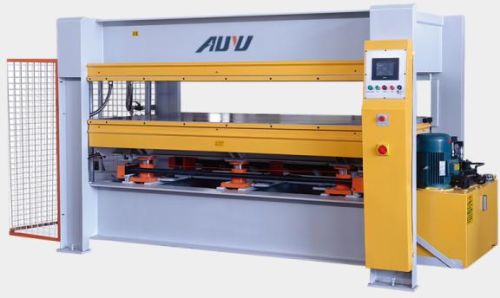

Hot Press

We are offering hot press.
1.delta plc control system with touch screen,
manual and automatic two ways operation for choice.
2.pressure, temperature, time and safety, etc can be set and display
through touch screen; guarantee less troubles and reduce waster ratio.
3.heating type:
electric heating with circulating heat transmission oil.
Steam heating
model by214x810(1) customed model
nominal pressure 100ton 0-1400ton
dimension of hot platen 2500*1300*42mm customized size
number of layers 1 customized size
opening 100mm customized size
diameter of oil cylinder ð¤90mm customized size
number of cylinders 6pcs customized
heating medium steam or thermal oil steam or thermal oil
working pressure of high pump 25.2mpa 14-28mpa
hydraulic motor power 4.5kw customized
hot oil pump power? 1.5kw customized
net weight 7800kg subject to final design
