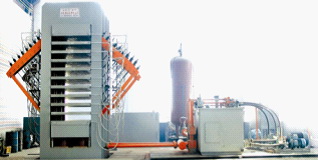

Hot Presser, Pressing Machine

We are offering hot presser, pressing machine etc. Nominal gross pressure 12000kn
direction of feeding plate vertical
layer counting 10 daylights
distance between hot platens 150mm
numbers of hot platens 11 pcs
dimension of hot platens 2700*1500*100 mm
numbers of cylinder 6 pcs
diameter of cylinder 320mm shanghai
stroke of cylinder 1500mm
pressurization equal or less than 26 mpa
diameter of power tank 1240mm*4000mm
siemention with
empty closing time about 11seconds
the flux of accumulator 3000 l per min
low pressure pump flowing 171 ml per r
allowed pressure equal or less than 3.5 mpa
power 15kw
high pressure pump flowing about 63 ml per r
power 22kw
middle pressure pump flowing 160 ml per r
allowed pressure 15 mpa
power 45kw
pressure of unit plate blank 35 kgf per ㎝2
dimensions of the board 2580mm*1350mm
control method automatic pump station
electrical appliance suzhou siemens
pressure gauge hangzhou
hydraulic valve shanghai youyan
frame pattern composite frame
thickness of upper and lower crossbeams 800mm
thickness of steel plate 40,30,20,12mm
thickness of plateform above 300mm
thickness of steel plate 35,30,20mm
steel plate of upright colum 40,12mm
thickness of acctive crossbeam 450mm
thickness of steel plate 30,20mm
overall dimensions 2400*2700*5210mm
total weight about 85,000kgs
