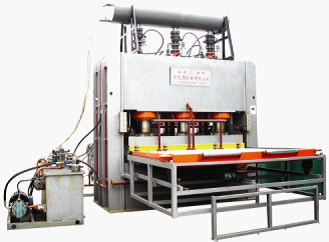

Hot Presser, Pressing Machine

We are offering hot presser, pressing machine etc.norminal gross pressure 12000kn
direction of feeding plate horizontal
layer counting 1 daylight
distance between hot platens 300 mm
numbers of hot platens 2 pcs
dimension of hot platens 2700*1400*100mm upside
2700*400*120mm downside
numbers of cylinder 6 pcs
diameter of cylinder 320 mm
stroke of cylinder 300 mm
pressurization equal or less than 25mpa
the position of cylinder upside
empty closing time about 4 to 5 seconds
numbers of lift cylinders 4 pcs
diameter of cylinder 60mm, 30mm
stroke of cylinder 300mm
high pressure pump flowing about 89l per min
allowed pressure equal or less than 25mpa
power 37kw
pressure of unit plate blank 40kgf per cm2
machine weight about 32000kgs
control method automatic pump station
electrical appliance siemens
products board size 2440mm*1220mm
overall size 2650*3000*4340mm.
