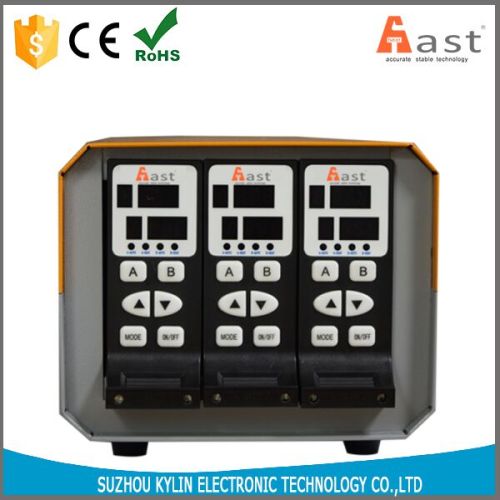

Hot Runner Temperature Controller, Brand Name : AST for Industrial

We are offering hot runner temperature controller the kt-300d series controller has been designed for moulding applications with a low number of control zones. Extremely compact, these twin zone modular controllers can be fitted into cabinets. The kt-300d series benefits from the latest manufacturing technology,including the optimum use of surface mounted electronic components(smc) and becomes a new milestone in terms of performance, robustness and price.
General specifications:
1. Twin zone modular controller
2.more cabinet sizes to be selected
3.15 amps per zone
4.press updown to adjust set temperature, there are two keys of a and b, a for the first zone, b for the second zone
standard features:
1.automatic, manual, and standby mode
2.soft start mode
3.separately adjustable alarms on temperature deviation(high and low)
4.alarms on thermocouple faults(breakage, inversion)
5.alarms on heater faults
6.power on self test
advanced features:
1.shift to manual mode in case of temperature failure
2.alarms on faults during working
specification:
control accuracy ±1°c
temperature unit °c or °f (menu-selectable)
temperature range 50 ~ 550 °c
thermocouple type j or k
operation mode auto, manual and standby mode
process sampling rate 25 ms
temperature stability ±0.5%
output pha, ocr
overload protection field-replaceable fuses
