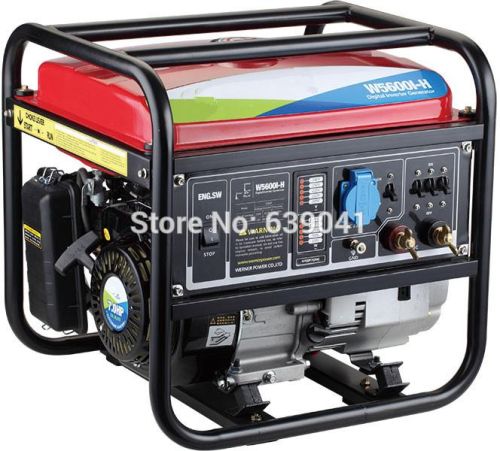

Contact SupplierWe are offering dcac inverter generator 5kw
----brandnew+iso9001,ce
---super power engine!
---amazing aftersales service!
---competitive factory price!
advantage:
digital inverter with magnet alternator.
Save 20% fuel comsuption than other machines
1. Easy to operate, suitable for a large range of application, ideal for home and business.
2. Rare earth permanent magnetic digital inverter alternator to insure high efficiency.
3. Low noise and easy operation,low fuel consumption
4.compact structure and light weight
model name at60a
engine
engine 190f
engine type 4-stroke,ohv,single cylinder, cylinder inclined, air cooled,petrol
displacement 420ml
compression 8.2:1
rated rev 3600rmin
ignition system t.c.i
start system recoil hand-operated,electric system
engine rated output 8500w
fuel tank capacity 21l
fuel comsumption less than 299gkw.h
lube oil capacity 1.1l
ac generator
rated output (kw) 3kw
rated ac frequency 5060hz
rated ac voltage 230v
rated ac voltage 13a
rated ac voltage ates permanent magnetic alternator,100%copper,brushless
phase no. singel phase
output waveform pure sine wave
output efficiency more than 90%
total harmonic distortion less than 1.5%
frequency stability ±0.5hz
voltage regulation 0.5%v
dc charger
max.current (a) 180a
rated current range 60a
voltage 48v
dimension 599×502×523 mm
net weight 59kg
