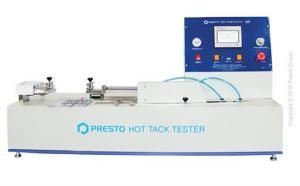

Hot Tack Tester

Presto designs and manufactures Hot Tack Tester for hot tack and heat seal performance tests. These tests are performed for plastic films, laminated films, and other packaging films. The device is used for the tension, peel, shear,  and other test items for adhesive tapes, laminated films, plastic films, adhesive, paper and other flexible materials.

The device is basically used for various tests. The hot tack performance such as plastic films, sheets, and composite films, for example, PET, PP, and composite films that are used in packages for instant noodle, milk powder, washing powder, food, and drugs. The heat seal performance of the device is used in plastic films, sheets, and composite films whereas the peel strength is used for adhesives and adhesive tapes. The tensile strength test is performed for various films, sheets, and composite films.

The machine is finished in Autumn Gray & Blue combination painting and bright chrome / zinc plating for providing corrosion resistant finish. The equipment provided with Instruction Manual, Electrical Wiring Diagram & Calibration Certificate traceable to NABL approved Labs

SPECIFICATION

• The sealing temperature is between Ambient to 250 degrees with least count 3 gm
• The temperature accuracy is +/- 1.0 %
• The Dwell Time for Heat Seal is 0.1~999.9 s and for Hot Tack is 0.1~999.9 s
• The Sealing Pressure is between 2 Bar to 7 Bar
• The load cell capacity is 3 kgf
• Hot tack speed is 150 mm/sec.
• Test type is Hot tack tester / Peel off
• The Tension Test speed is between 50-500 mm/min.
• The power supply is single phase 220 V AC 50 Hz.

FEATURE

• The tool has user-friendly features, Microprocessor based PID control providing an accurate test result.
• The device is extensively used for different applications such as a peeling test and tensile strength test of medical adhesives such as adhesive bandages.
• The adhesive tapes are tested for the low-speed unwrapping test. The protection films are tested for peeling test and tensile strength test.
  • Display for Peak value
  • Memory to hold up to 1 test reading
  • Highly accurate test results under pneumatic pressure control.
  • Strong heating jaws for performing tests
  • No slippage in case specimen is tightened uniformly using clamping knobs without any loops.
  • HMI touchscreen display and controller
  • Speed Control through Variable Frequency Drive
  • PID temperature controller
