Hot Work Die Steel

We are offering hot work die steel ,
h11, 1.2343, skd6, 4cr5mosiv (hot work die steel)
size available:
plate bar: thickness 40-350mm
width 100m-1000mm
length 2m—6m

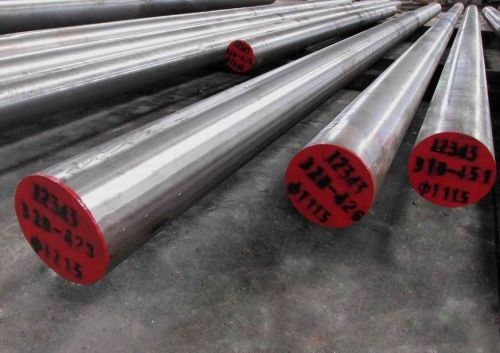

round bar: dia. 80---600mm
listing description
1. Eaf-lf-vd-esr forged
2. Iso 9001 certificated
3. Factory direct sales steady supply
4. Higher resistance to heat checking
detailed description
principal design features
1. Hot work die steel
2 high thermal strength and hardness
3.good toughness and thermal fatigue resistance
applications
the steel is widely used for manufacture of casting dies, extrusion dies and forging dies.
technique: ef esr (melting) + forging+ hot rolled +annealed
steel grade: h11, 4cr5mosiv
specification: flats 40-350x100-1000mm
delivery condition: eaf+lf+vd+(esr),forged, annealed, ut tested, peeled or machined.
chemical composition: c:0.33-0.43 mn:0.2-0.5 si:0.8-1.2 cr:4.75-5.50 mo:1.10-1.60 v:0.30-0.6
tolerance: 0+2mm
ut grade: sep1921,group3, class dd
payment item: tt,lc
chemical composition(for reference only):
gb(4cr5mosiv): c:0.33-0.43 mn:0.20-0.50 si:0.80-1.20 cr:4.75-5.50 mo:1.10-1.60 v: 0.30-0.60 p: ≤0.03 s: ≤0.03
aisi(h11): c:0.33-0.43 mn:0.20-0.50 si:0.80-1.20 cr:4.75-5.50 mo:1.10-1.60 v: 0.30-0.60 p: ≤0.03 s: ≤0.03
equivalent grades:
gb：4cr5mosiv
aisi：h11
din：1.2343
jis： skd6
quality assurance:
we are the iso 9001:2000 authentication enterprises and we can provide the enterprise's quality written guarantee for all the exported products.
shaping: hot forged hot rolled
surface condition: black surface turning milling peeling polishing.
weight(kg): round bar=0.00617*r*r*l
flat bar=0.00785*t*w*l.
