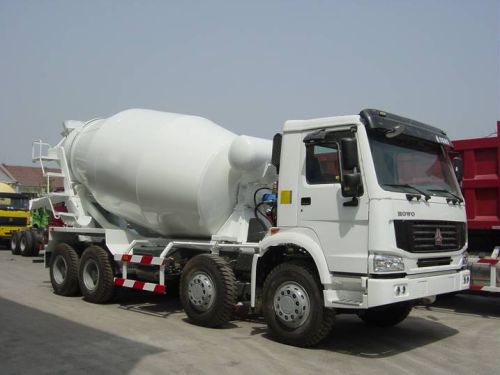

Howo Chassis Concrete Mixer Truck, Brand Name : SINOTRUK

We are offering sinotruk howo chassis 10cbm concrete mixer truck 8x4-zz1257n3841w. Main description-:
overall dimensions：9355mm*2496mm*3950mm(l*w*h)
tare weight：13870kg
payload：25000kg
front overhang：1500mm
rear overhang：2680mm
wheelbase：3825mm+1350mm
track (fr)：2022mm1830mm
chassis
chassis brand：sinotruk howo
chassis model：zz1257n3841w, driving type 8x4
cab：hw76, left hand drive, air-conditioner, one sleeper
engine：sinotruk wd615.69, 336hp, euro ii emission standard,
transmission：hw15710, no. Of speeds: 10 forward & 2 reverse
steering：german zf8098, turning system pressure 18mpa
rear axle：hc16 tandem axle, rated load 2x16ton, ratio 5.73
wheels and tires：rim 8.5-20; tire 12.00r20, 10 units; spare wheel carrier: with one spare wheel
brakes
service brake: dual circuit pneumatic brake; parking brake: spring energy, compressed air operating on rear wheels; auxiliary brake: engine exhaust brake
mixing system
mixing volume：10cbm
water tank volume：440l
hydraulic pump brand: ark, italy
motor brand: ark, italy
speed reducer brand: topunion, italy
