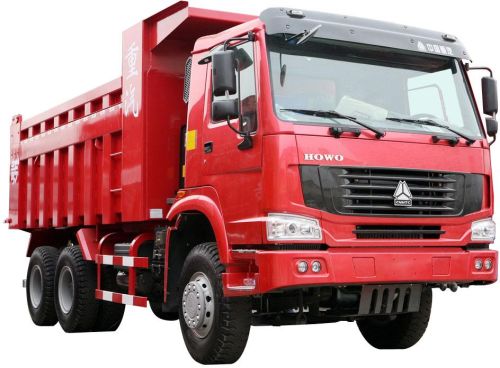

Howo Tipper, Fuel Type : Diesel

Model
Zz3257m4641
engine
Diesel:4-stroke Direct Injection Diesel Engien
engien Model:wd615.87,Euroii,Wd615.93e Emission Standard
6-cylinder In-line with Water Cooling,Turbo-charing and Intercooling
maximum Output:290hp(213kw)at 2200 Rpm
maximum Torque:1160nm At 1100-1600 Rpm
displacement:9.726l
bore:126mm
stoke:130mm
compression Ratio:17.5:1
specific Fuel Consumption :198g/kwh
engine Oil Filling Quantity(long-term Filling):40l
thermostat with 80°c Opening Begin
visco Fam
clod Start with Electro-heater
clutch
Single-plate Dry Coil-spring Clutch,Diameter 420 Mm,Hydraulically Operating with Air Assistance
transmission
9js119,9forword&1reverse
ratio:12.11,8.08,5.93,4.42,3.36,2.41,1.76,1.32,1.00,12.66
optinal:5s-150gp
propeller Shaft
Double Universal Joint Propeller Shaft with Gear-shaped Coupling Flange
front Axle
Steering with Double Tcross Section Beam
rear Axle
Pressed Axle Housing, Single Reduction with Hub Reduction and with Differential Locks Between Axles and Wheels
chassis
Frame:u-profile Parallel Ladder Frame with Hub Reduction and Reinforced Subframe,All Cold Riveted Cross Members
front Suspension:10 Semi-elliptic Leaf Spings with Hydraulic Telescopic Double-action Shock Absorbers and Stabilizer
rear Suspension:12 Leaf Semi-elliptic Springs with Bogie Springs and Stabilizer.
fuel Tank:300l
spare Wheel
steering
Zf8098,Hydralic Steering with Power Assitance
ratio:22.2-26.2
braking System
Service Brake:dual Circuit Compresed Air Brake
parking Brake:spring Energy,Compressed Air Operating On Rear Wheels
auxiliary Brake:engine Exhaust Brake
optinal:abs
wheel & Types
Rims:85.2-20,10 Hole-steel
types:12.00-20
optinal:12.00r20,11.00-20,11.00r20
cab
Stangard Cab, All-stell Forward Control,55ºhydraulically Titable to the Front, 2-arm Windscreen Wiper System with Three Speeds, Laminated Windscreen with Casted-in Radio Aerial, Hydraulically Damped Adjustable Driver's Seat and Rigid Adjustable Co-driver's Seat , with Heating and Ventilating System, Exterior Sun Visor, Adjustable Roof Flap, Stereo Radio/cassette Recorder,Safety Belts,Adjustable Steering Wheel, Air Horn, With4-point Support Fully Floating Suspension and Shock Absorbers
electrical System
Operating Voltage:24v, Negative Grounded
starter:24v,7.5kw
alternator:28v,1500w
batteries:2×12v,165ah
cigar-light,Horn,Headlams,Fog Lights,Indicators and Revese Light
optinal:180ahbatteries
instrument Panel
Active Check Control with this Instrument the Daily Manual Checks On the Vehicle and Indicator of Compressed Air Pressure,Coolant Temperature,
engine Oil Pressure and Battery Charging
wheel Base
frontwheeltrack
rear Wheel Track
front Overhang
rear Overhang
approach Angle(°)
departure Angle(°)
overall Length
overall Width
overall Height
cargo Body Size
4625+1350
2022,2041
1830
1500
2280
19
20
9755
2496
3170
7000×2300×1500
permissible Load Capacity
chassis Dead Weight
gross Vehicle Weight
front Axles Loading Capacity
rear Axles Loading Capacity
12770
12100
25000
7000
2×9000
maximum Drxing Speed(km/h)
maximun Gradeability(%)
minimum Ground Clearance(mm)
minimum Turning Circle(mm)
fuel Consumption(l/100m)
