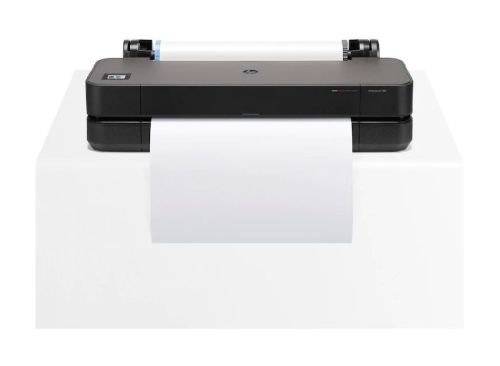

HP DesignJet T230 Large Format A1 Plotter

₹ 75,000 - ₹ 77,500 / Unit

Brand NameHP
ApplicationHome
Country of OriginIndia
Memory512 MB
Supply TypeSupplier, Retailer, Distributor, Trader
Preferred Buyer Location Anywhere in India

Technical Specifications

BOX CONTENTS
What's in the box	HP DesignJet T230 24-in Printer, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
CONNECTIVITY AND COMMUNICATIONS
Connectivity, standard	Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
Print multi-size files in one click	Yes
Remote print enabled	Yes
WEIGHTS
Weight	21.5 kg
Package weight	28 kg
DIMENSIONS
Minimum dimensions (W x D x H)	1013 x 440 x 285 mm
Package dimensions (W x D x H)	1155 x 575 x 405 mm
BATTERY AND POWER
Power	Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
Power consumption	<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)
SOFTWARE AND APPLICATIONS
Software included	HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant
WARRANTY
Manufacturer Warranty	One-year limited hardware warranty
CARTRIDGES AND PRINTHEADS
Number of print cartridges	4 (C, M, Y, K)
Ink types	Dye-based (C, M, Y)
Ink types	pigment-based (K)
Color(s) of printing supplies	Cyan, magenta, yellow, black
Ink drop	5.5 pl (C, M, Y)
Ink drop	12 pl (K)
Print cartridge volume delivered	80 ml (K)
	38 ml (K)
	29 ml (C, M, Y)
Print head nozzles	1376
Print heads	1 (cyan, magenta, yellow, black)
High capacity of page yield (colour)	20 ml of ink yields 101 A1 pages, taking into account maintenance routines[2]
PRINTER SPECIFICATIONS
Functions	Print
Internal Storage	None
Print technology	HP Thermal Inkjet
Print languages	JPEG, URF
Printer drivers included	Raster driver for Windows and macOS
Printing path	Print Anywhere with HP Smart app, HP Click, HP driver for macOS, HP driver for Windows, printing support for Chrome OS, email printing, HP Print Service Plugin for Android, Apple AirPrint
Line accuracy	±0.1%[3]
Theoretical minimum line width	0.02 mm
Model size	610 mm
PRINT SPEED
Print speed	35 sec/page on A1, 68 A1 prints per hour[1]
PRINTING MEDIA HANDLING
Finished output handling	Sheet feed, roll feed, automatic horizontal cutter
PRINT AREA
Non-printable area (cut-sheet)	5 x 5 x 5 x 17 mm (manual feed)
Non-printable area (cut-sheet)	5 x 5 x 5 x 5 mm (input tray)
Non-printable area (roll media)	5 x 5 x 5 x 5 mm
PRINT RESOLUTION
Print quality color (best)	Up to 2400 x 1200 optimised dpi
Maximum optical density (black)	8 L* min/2.10 D[4]
PRINTING MEDIA
Media sizes standard (metric rolls)	279 to 610 mm
Roll external diameter	100 mm
Roll maximum input	1
Roll maximum weight	4.1 kg
Media thickness	Up to 11.8 mil
Supported Primary Applications	Line drawings
	Presentations
	Renderings
Recommended media	Q1396A HP Universal Bond Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m
	C6019B HP Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m
	C6029C HP Heavyweight Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 30.5 m
SUPPORTED PRINTING MEDIA
Media sizes supported	A4, A3, A2, A1
Media sizes, custom	210 x 279 to 610 x 1897 mm
Media types	Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)
Media weight, recommended	60 to 280 g/m²
Media width, maximum	610 mm
Media thickness (metric)	Up to 0.3 mm
