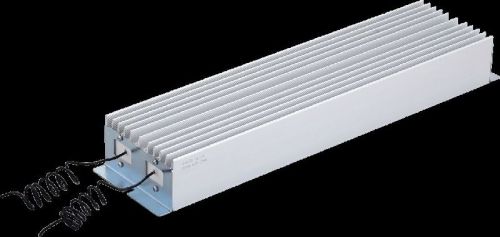

High Power Aluminium Resistors

Listing ID #4267973

750 / Piece

Get Latest Price

MOQ 1 Piece(s)
TypeHPAR
Temp. Coefficient50 ppm/°C, 100 ppm/°C, 260 ppm/°C
Derate to zeroat 275°C
Vibration10c/c ~ 50 c/s ~ 10 c/s (1min) -2h each of paralleled and right angle.
Supply Type Manufacturer, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Type HPAR
Derate to zero at 275°C
Load Life Wattage Rating 1.5 h On, 30min off, 1000h
Dielectric Strength AC1500V, 3500V, 5000V for 1 min
Short Time Over Load 10 X Wattage Rating, 10 sec
Thermal Shock Wattage Rating 30min. -25°C, 15min
Temp. Coefficient 50 ppm/°C, 100 ppm/°C, 260 ppm/°C
Insulation Resistance >20Mohm MIN
Vibration 10c/c ~ 50 c/s ~ 10 c/s (1min) -2h each of paralleled and right angle.
Moisture Resistance Temp 40°c Moisture 95% Dc100v500h
Operating Temp. -55°C - +275°C

Features :

Low Price Small Size.
High Power and Excellent load life stability
Excellent short time over load
Strongly resistant to moisture & solvent.
Self-extinguish material is used in encapsulation.
Non-inductive type available.
High-surge-resistant items are available.
Wire terminals available. Standard length 300mm
longer length upto 1.25 mtrs. can also be supplied.
Models with thermal switch available.
Custom built resistors is our speciality.

Ordering Process
For Example :

ONICS
HPAR 1.5KW 100R K T W3 MM/YY
ONICS – Brand Name
HPAR1.5KW – Model Number
100R = Resistance Value,
K = tolerance 10% , T = Thermal Switch, W3= Wire Terminal 300MM Length, MM/YY = Month/year Of

Note :

For 5% tolerance use J instead of K.
For 500mm wire terminal length use W5 instead of W3.
For clip terminal use C instead of W3 or W5.

Graph

Download Detail File : Click Here

Dimensions (IN Mm)

Model	Nominal Power @40 Degree C	A	B	C	D	E	F
HPAR1KW	400w	235	223	203	235	115	60
HPAR1.2KW	500w	285	273	253	285	115	60
HPAR1.5KW	570w	335	323	303	335	115	60
HPAR2KW	650w	385	373	353	385	115	60
HPAR2.5KW	750w	485	473	453	485	115	60
HPAR3KW	830w	585	573	553	585	115	60
HPAR3.5KW	920w	635	623	603	635	115	60
HPAR4KW	1000w	685	673	653	685	115	60
HPAR4.5KW	1100w	735	723	703	735	115	60

PN: Nominal power with natural cooling with internal thermal switch180 degree C
Safe operating temperature is 275 degree C.

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Product Images

Company Details

We,ENAPROS INDIA are leading manufacturer of UL Certified, RoHS compliant ,REACH certified and CE marked Onics brand Power,Braking Resistors.Our company is ISO 9001 2015 certified.Our resistors find application in Hoist, Lift, Motor Control, Starting resistor, Solar inverters, Wind energy and many other applications. We are exporting the same to more than 25 countries including Europe and US.
We are OEMs to ABB,Schnieder,Rockwell Automation,Demag,Honda,National Panasonic in India.Our quality is highly acceptable in India and international market.
