Product Details
Company Details

Number Of FlowerHPLC System
Brand NameVSI
Power Input85 to 264V AC, 47 to 63 Hz, 60 Watts.
Payment TermsNEFT, IMPS, DD, D/P, T/T, Other
Dimensions – Pump410 x 180 x 270 mm.
Weight – Pump7.3 Kgs.
Precision - Pump0.25% from 0.1 mL/min to 10 mL/min. at 20oC//0.25% from 0.05 mL/min to 4 mL/min. at 20oC (Micro)
Flow Rate Settings - Pump0 – 0.10 mL/min. 0.001 inc.//0.10 – 0.90 mL/min. 0.010 inc.//1.0 mL/min. + 0.10 inc.
Display320 mm.
ControlStandalone mode using front panel
Pmax – PumpPmax
Accuracy - Pump+/- 1% or +/- 2µl/min, whichever is greater// +/- 1% or +/- 1µl/min, whichever is greater (Micro)
System Connections - Pump1/16” Capillaries

VSI Electronics Private Limited is an established manufacturer, supplier and exporter of HPLC System from India. HPLC System offered by the company are high on quality, performance and are made of the finest quality raw materials, making them durable and long lasting.

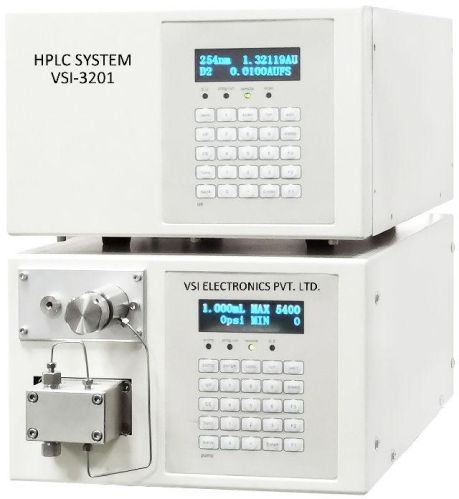

HPLC System (High Pressure Liquid Chromatography System), VSI-3201 is an isocratic system with high pressure solvent delivery pump, Multi-wavelength UV Detector, Sample inject valve Rheodyne 7725i. LC Column (USA) with work-station software. Wavelength range 190-700nm, Wavelength accuracy +/-1nm, spectral bandwidth 8nm, flow cell volume 8 micro litre, optical length – 10nm.

SALIENT FEATURES

Self-priming pump head requires no manual priming
Patented “Floating Pump Seal” designed for extended seal Wear
Available with Micro, Analytical, Semi-prep, and Prep Pump Heads
Programmable solvent compressibility compensation
Easy maintenance and Service for all wetted parts
Integral prime/purge assemble for quick solvent change
Sample inject valve Rheodyne 7725i
LC Column (USA) with work-station software
Multi-wavelength UV Detector
Wavelength range 190-700nm
Wavelength accuracy +/-1nm
Flow cell volume 8 micro litre
Spectral bandwidth 8nm
Optical length – 10nm

Note: Appearance & Specifications are subject to change due to continuous development.

Technical Specifications Of HPLC System

Wavelength	190-700 nm.
Spectral Bandwidth	6 nm
Wavelength Accuracy	<= +/- 1 nm.
Wavelength Reproducibility	<= +/- 0.5 nm.
Flow Pool Volume	10 µl
Optical Path	10 mm
Dynamic Noise
Static Noise
Dynamic Drifting
Static Drifting
Qualitative Repeatability	RSD
Quantitative Repeatability	RSD
Dimensions – Detector	160H X 260W X 350D (mm.)
Weight – Detector	6 Kg.
Minimum Detection Concentration
Standard Accessories	Rheodyne Injector 7725 I (USA)// Micro Syringe// Column C-18// Software CD// Filters// Instruction Manual
