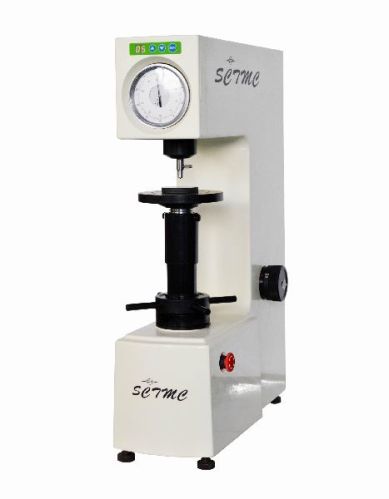

HR-150DT Motorized Rockwell Hardness Tester

Dimension520×215×700mm
Model NumberHR-150DT
Max. Height of Specimen175mm
Execute StandarDISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2
Supply TypeManufacturer, Supplier
Preferred Buyer Location All over the world

Product Details

Dimension520×215×700mm
Model NumberHR-150DT
Packing Dimension650×370×950mm
Hardness ReadingDial
Initial Test Force10kgf (98.07N)
Loading MethodAutomatic (Loading/Dwell/Unloading)
Max. Height of Specimen175mm
IndenterDiamond Rockwell Indenter, ф1.588mmBall Indenter
Power SupplYAC220V, 50Hz
Throat165mm
Total Test Force60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)
Net Weight78kg
Gross Weight100kg
Execute StandarDISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2
Resolution0.5HR
Dwell Time2~60s

Main Function : HR-150DT Motorized Rockwell hardness tester adopts the mechanism of automatic loading and unloading of the test force, the test force is regulated by the load-change hand wheel. It can select the dwell time and is very easy to use. Besides setting zero to dial, there is no man-made error. The instrument has high sensitivity and stability.
Application range : Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.

Packing List

Name	Qty
Instrument Main Body	1 set
Ñ�1.588mmBall Indenter	1 pc
Large Plane Test Table	1 pc
Hardness Block 60~70 HRC	1 pc
Hardness Block 80~100 HRB	1 pc
Power Cable	1 pc
Level	1 pc
Screw Driver	1 pc
Anti-dust Cover	1 pc
Diamond Rockwell Indenter	1 pc
Middle Plane Test Table	1 pc
V-shaped Test Table	1 pc
Hardness Block 20~30 HRC	1 pc
Weight A, B, C	3 pcs
Fuse 2A	2 pcs
Horizontal Regulating Screw	4 pcs
Spanner	1 pc
Usage Instruction Manual	1 copy
