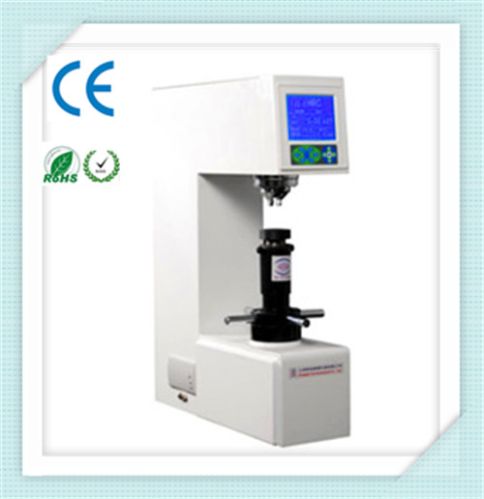

HR-45D Digital Rockwell Hardness Tester, Brand Name : JUNG

Technical Specifications:
Model HR-45D
Conversion Scale Superficial Rockwell, Brinell, Vickers
Indication of Hardness Value Large LCD screen display
Data output Inside Printer, RS-232
Duration time 2-60s
Carried Standard GBT230.2 Chinese Standard, JJG112 Inspection Rule
Preliminary Testing force 3kgf(29.42N)
Testing force 15kgf(147.1N)30kgf(294.2N)45kgf(441.3N)
Rockwell Scale HR15N HR30N HR45N HR15T HR30T HR45T
Hardness measuring range HR15N:70-94;HR30N:42-86;HR45N:20-77;
HR15T:67-93;HR30T:29-82;HR45T:10-72
Max Height of Specimen 175mm
Distance of Indenter to outer wall 160mm
Power supply AC220V+5%,50-60Hz
Overall Dimension (mm) 520*240*720mm
Net weight About 65Kg
Standard Accessories:
Name Quantity Name Quantity
Diamond Rockwell Indenter 1 1.5875mm Ball Indenter 1
Hardness block
(HRC High Low 2, HRB 1) 3 Large, Medium, "V" shaped Testing Table 1 each
Weights(A,B,C) 1 each Plastic Dustproof cover 1
Operation Manual 1 Product certificate 1
Optional Accessories:
Data processing software CD 1pc
USB cable 1pc
