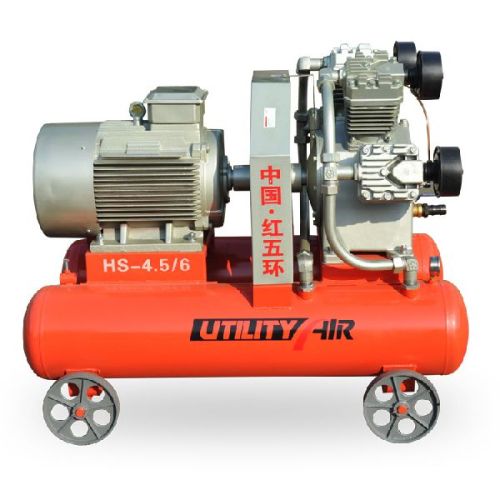

HS-4.5/6 Electric 25kw 6bar Piston Air Compressor

Intake, exhaust separated high-strength patent cylinder heads of hs-4.5/6 electric 25kw 6bar piston air compressors have good heat insulation and heat dissipation. Patent design streamline cooling fan of electric 25kw air compressors ensures large air volume and fast cooling.  w mining series technical parameters                                                                                                      model parameters unit w1.8/5 w2.85/5 w3.0/5 w3.5/5 air displacement m³/min 1.8 2.85 3 3.5 discharge pressure mpa 0.5 0.5 0.5 0.5 crankshaft speed rpm 1180 1070 1070 1070 cylinder no. 3 3 3 3 cylinder diameter mm 100 115 120 125 piston stroke mm 80 100 100 100 air receiver volume l 130 200 200 200 motor power kw 11 15 15 18.5 diesel engine s1100 s1110 s1115 s1125 cooling method air cooling weight with motor kg 257 340 345 350 weight with diesel kg 299 400 405 410 length mm 1630 1750 1750 1750 width mm 750 940 940 940 height mm 1150 1290 1290 1290                             model parameters unit.
