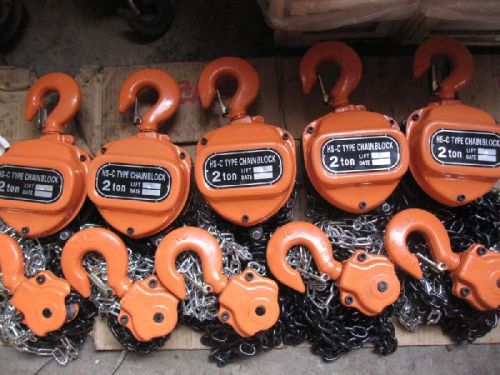

HSC-C Chain Hoist

We supply combined series lifting chain hoistmaximum rated load 24.5tsmall size, light weight, easy to carryother colors availablestandard lifting height  3m     we supply combined series lifting chain hoist is light weight, suitable for simple manual operation and has a strong safety performance and high safety of the product performance, easy to use security; specifically designed for heavy industry, 360 ° rotating hand chain guide allowed operation from all angles, so that the operator can stay away from the danger zone. Model   hsz-c0.5 hsz-c1 hsz-c1.5 hsz-c2 hsz-c3 hsz-c5 hsz-c10 hsz-c20 rated lifting weight t 0.5 1.0 1.5 2.0 3.0 5 10 20 rated load kn 6.25 12.5 25 37.5 62.5 122.5 183.75 245 minimum turning radius m 0.9 1 1.2 1.5 2 3 4.5 4.5 standard lifting height m 3 3 3 3 3 3 3 3 main pan size (mm) a 238 277 302 363 436 455 642 642 b 137 170 194 230 260 447 537 537 c 336 338 346 382 395 475 525 525 e 88 88 88 120 120 155 158 158 f 3 3 3 3 3 3-5 4-6 4-6 m m18 m22 m27 m30 m42 m48 m48 m48 d 35 35.5 42.5 50 64 85 110 110 k 28 26 32 37 46 64 85 85 hmin 280 337 423 447 616 820 980 980 cross steel range mm 50-180 58-180 58-180 74-180 98-180 136-175 144-175 144-175.
