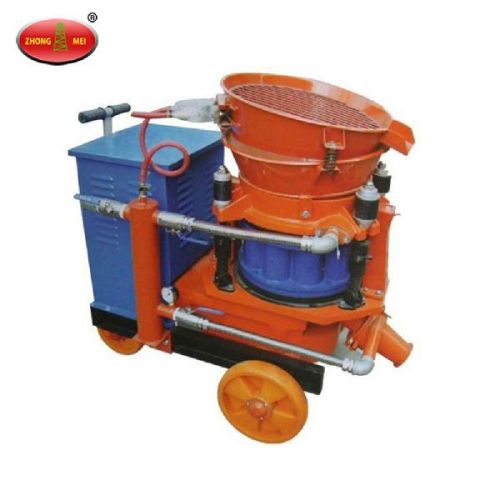

Hsp-7 Mining Construction Wet Mix Shotcrete Machine

Introduction of Hsp-7 Mining Construction Wet Mix Shotcrete Machine We are manufacture of construction machine such as Shotcrete Machines, Gunite Machine, Wet Mix Shotcrete Machines, wall plastering machine, wall putty machine. Hsp-7 Wet Type Shotcrete Machine is an advanced and high efficient concrete spraying machine, which has been designed especially for spraying of concrete . It has the advantages of low dust , low rebound , high-strength concrete , simple operation , convenient for maintaining , prolong operation life etc. The machine , combined with dosing unite , is suitable for manual spraying or by means of a robotic arm . It is used for the application of shotcrete in rail and road tunnel , subway engineering , hydro-power engineering, underground engineering , mine gallery and more concrete engineering. Wet shotcrete is use the mixed concrete, and then add accelerator. Parameter of Hsp-7 Mining Construction Wet Mix Shotcrete Machine Model HSP-7 Output 7m3h Max transport distance   Horizontal 30m Vertical: 20m Max aggregate size 15mm Working pressure 0.4-0.6Mpa Air consumption 10-15m3min Turn daughter diameter 505mm Voltage class 380 measurement 2200*930*1180mm Weight 1050kg Pictures of Hsp-7 Mining Construction Wet Mix Shotcrete Machine.
