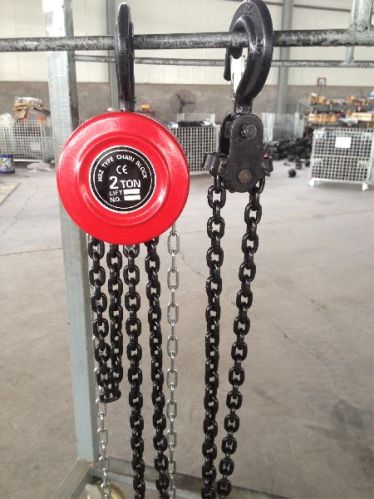

HSZ Chain Block Lifting Chain Hoist

Introduction of  CE certificate construction used chain pulley hoist/block HSZ chain hoist adapts Japanese technology, designed according to the need of market, driving more smoothly and avoiding chain block etc. It is more powerful and labor saving. Warmly welcomed by our clients home and abroad. Features of  CE certificate construction used chain pulley hoist/block 1.More labor saving, low noise2.Light in Weight3.Compact structure4.Forged drop Hook5.Ratchet type brake warrants, safe and dependable operation6.G80 chain Long life7.100% test before shipping Type 0.5 1 1.5 2 3 5 10 20 load Capacity (ton) 0.5 1.0 1.5 2 3 5 10 20 Lifting Height (M) 2.5 2.5 2.5 3 3 3 3 3 Proof Load (ton) 0.75 1.5 2.25 3 4.5 7.5 12.5 25 Distance of two hooks (mm) 270 270 368 444 486 616 700 1000 Hand Chain Force (n) 225 309 343 314 343 383 392 392 Number of Chains (row) 1 1 1 2 2 2 4 8 Lifting chain diam (mm) 6 6 8 6 8 10 10 10 Dimension (mm) a 120 142 178 142 178 210 358 580 b 108 122 139 122 139 162 162 189 c 24 28 34 34 38 48 64 82 d 120 142 178 142 178 210 210 210 N.W. (kg) 9.5 10 16 14 24 36 68 155 G.W. (kg) 112 13 20 17 28 45 83 193 Packing (cm) L*W*H 28*21*17 30*24*18 34*29*20 33*25*19 38*30*20 45*35*24 62*50*28 70*46*75 Extra weight per m of extra lift (kg) 1.7 1.7 2.3 2.5 3.7 5.3 9.7 19.4.
