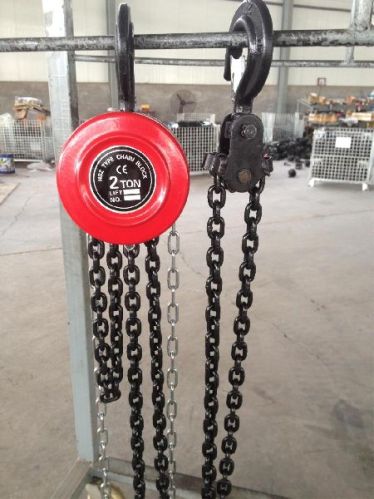

HSZ Manual Hand Hoist

Product description 1.automatic double pawl braking system 2.lightweight robust construction 3.low effort to lift maximum load 4.fully forged hooks 5.fully machines lift wheel 6.iso high grade alloy load chain 7.zinc plated hand chain as standard 8.extra thick asbestos free friction discs 9.double cover protection (optional) 10.black or galvanized load chain 11.durable baked enamel paint protection 12.overload protection device available upon request type 0.5 1 1.5 2 3 5 10 20 load capacity (ton) 0.5 1.0 1.5 2 3 5 10 20 lifting height (m) 2.5 2.5 2.5 3 3 3 3 3 proof load (ton) 0.75 1.5 2.25 3 4.5 7.5 12.5 25 distance of two hooks (mm) 270 270 368 444 486 616 700 1000 hand chain force (n) 225 309 343 314 343 383 392 392 number of chains (row) 1 1 1 2 2 2 4 8 lifting chain diam (mm) 6 6 8 6 8 10 10 10 dimension (mm) a 120 142 178 142 178 210 358 580 b 108 122 139 122 139 162 162 189 c 24 28 34 34 38 48 64 82 d 120 142 178 142 178 210 210 210 n.w. (kg) 9.5 10 16 14 24 36 68 155 g.w. (kg) 112 13 20 17 28 45 83 193 packing (cm) l*w*h 28*21*17 30*24*18 34*29*20 33*25*19 38*30*20 45*35*24 62*50*28 70*46*75 extra weight per m of extra lift (kg) 1.7 1.7 2.3 2.5 3.7 5.3 9.7 19.4.
