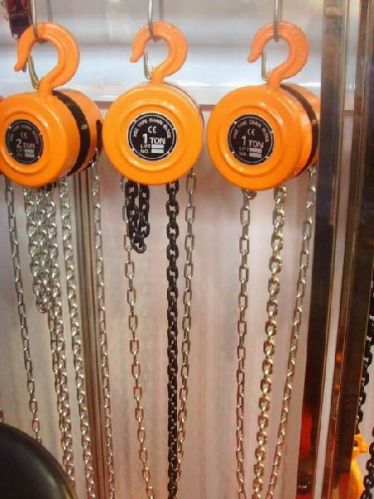

HSZ Series Chain Hoist Lifting Pulley Block

Material hoist1)hsc hand chain block2)10 ton chain hoist2)capacity: 0.5-20ton3)lifting height: 2.5m-3m4) chain: g80 alloy steel chain 1. Housing: made of high class steel, firmly and flexible2. Each inner spare parts is gard a, double pawl3. Chains: use g80 high quality alloyed steel chains4. Package: standard strong carton or color printed carton as you quirement or wooden case5. Both sides of the hoist are covered with a thick steel gear case6. The braking mechanism is enclosed in a double cover.7. In case one of pawl spring is damaged, the other maintains its functions. The design of the bottom hooks, with relatively large dimension, makes it easy to stabilize a load in proper position. Parameters model hsz-0.5 hsz-1 hsz-1.5 hsz-2 hsz-3 hsz-5 hsz-10 hsz-20 lifting weight (ton) 0.5 1 1.5 2 3 5 10 20 standard lifting height meters 2.5 2.5 2.5 2.5 3 3 3 3 test load tons 0.75 1.5 2.25 3 4.5 7.5 12.5 25 two hook falls the small distance (mm) 270 270 368 444 486 616 700 1000 bracelet tension when loaded with newton 225 309 343 314 343 383 392 392 lifting chain rows 1 1 1 2 2 2 4 8 lifting chain round steel in diameter(mm) 6 6 8 6 8 10 10 10 the main size( mm) a 120 142 178 142 178 210 358 580 b 108 122 139 122 139 162 162 189 c 24 28 34 34 38 48 64 82 d 120 142 178 142 178 210 210 210 the net weight kg 9.5 10 16 14 24 36 68 155 packing gross weight kg 12 13 20 17 28 45 83 193 packing size (length x width x height)cm 28×21×17 30×24×18 34×29×20 33×25×19 38×30×20 45.
