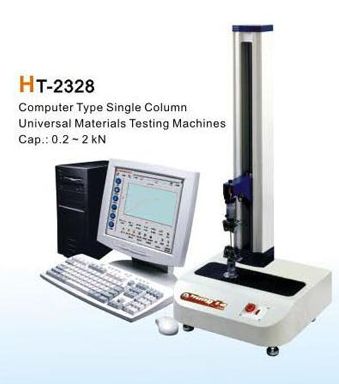

HT-2328 Material Testing Machine

Product Details

Features :

High Precision, High Accuracy, High Stability Material Testing Machines - able to do tensile, compression, flexural and bending test.
ISO 9001 and CE certified, superior products fabricated by highly trained and experienced personnel.
High Strength Structure - High strength aluminum alloy combined with streamlined design, elegant, bright and generous.
High Stability - Using Ball screw, less loss of kinetic energy and eliminating noise.
High Precision Load Cell - Features a low-profile load cell, with stable load induction, high accuracy, high stability, and a safety factor of 150 %.
Easy Operation - Superior function with quick operation, and testing speed range is from 0.005 ~ 500 or 1000 mm/min.
Standardization - A range of testing grips specification standardized modular replacement design, switch grips easily and fast for different testing samples.

Accuracy Certifications : The accuracy and precision conforms to the requirement for international standards. 1ccuracy Certifications

Type	HT-2328
Capacity Selection (N)	200 N	500 N	1 kN	2 kN
Force Resolution	0.02 N	0.05 N	0.1 N	0.2 N
The Force Relative Error	Class 0.5 ≤ ±0.5% or Class 1 ≤ ±1%
Testing Speed Range (mm/min)	A: Servo Motor Type : 0.005 ~ 1000 mm/min. Crosshead Speed Relative Error : Class 0.5 ≤ ±0.5% or Class 1 ≤ ±1%
Crosshead Working Table Distance (mm)	735 mm
Over Stroke & Overload protection device	Upper and lower limits protection device, when it over 10% of testing set up, the system will stop automatically for safety protection
Power	Servo Motor : 1 - Phase, 220VAC, 50/60 Hz
Power Consumption	0.4 kVA
Machine Dimension (W x D x H) (cm)	56 x 50 x126.5
Machine Welght(kg)	60
