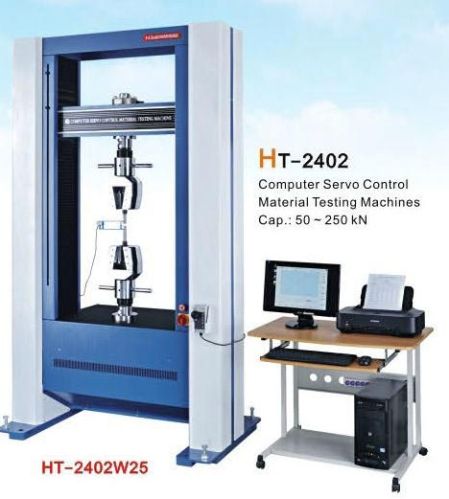

HT-2402 Material Testing Machine

Product Details

Type		HT-2402 ST5	HT-2402 STH5	HT-2402 STHW5	HT-2402 STHW5	HT-2402 ST10	HT-2402 STH10	HT-2402 STW10	HT-2402 STHW10	HT-2402 ST25	HT-2402 STH25	HT-2402 STW25	HT-2402 STHW25
Capacity Selection (kN)		50				100				250
Force Resolution		1/200,000 (Hung TA Interface card)
The Force Relative Error		Class 0.5 ≤ ± 0.5% or Class 1 ≤ ± 1%
Testing Speed Range (mm/min)		0.005~500 mm/min						0.05~200 mm/min
Crosshead Speed Relative Error		Class 0.5 ≤ ± 0.5% or Class 1 ≤ ± 1%
Effective Testing Width (mm)		560		800		560		800		560		800
Crosshead Working Table Distance (mm)		1230	1730	1230	1730	1230	1730	1230	1730	1430	1930	1430	1930
Power Supply		AC Servo Motor & Servo Driver
Power		3-Phase 220V, 2.5 kVA (360V 1415V Option						3-Phase 220V, 2.5 kVA (360V 1415V Option
Machine Dimension (W x D x H) (cm)		110 x 76 x 215.5	110 x 76 x 265.5	136 x 76 x 215.5	136 x 76 x 265.5	110 x 76 x 215.5	110 x 76 x 265.5	136 x 76 x 215.5	136 x 76 x 265.5	117 x 88 x 245.6	117 x 86 x 295.5	141.6 x 86 x 245.6	141.6 x 296.5
Machine Weight (kg)		700	800	800	1000	700	800	800	1000	1350	1450	1450	1650
Standard Accessories		Tensile Grip x 1 Set, Tool Kit x 1 Set, Operation Manual x 1 Set, Warranty Paper x 1 Set, TAF Certificate Report x 1 Set
Optional Accessories	Extensometer	Refer to the specifications of HT-8747 (Optional)
	Thermostat Chamber	Refer to the specifications of HT-8747 (Optional)
	Grip	Refer to the brochure of grips and fixtures, or provide specificaions or actual sampless for design and manufacture (Optional)
