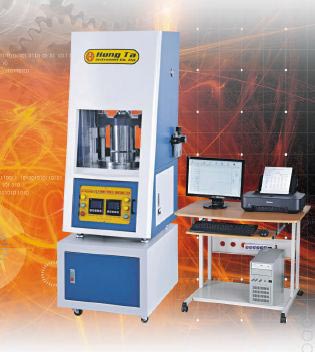

HT-2556 Moving Die Rheometer

Supply TypeManufacturer, Supplier
Preferred Buyer Location All over the world

Product Details

Sturdy construction and longer functional life are some of the attributes that make our HT-2556 Moving Die Rheometer highly popular. We are one of the trusted Manufacturers and Suppliers of Moving Die Rheometer. We have a well-equipped production unit that enables us to produce rheometer in bulk at time. We are efficient enough to process retail as well as bulk orders for Moving Die Rheometer even at short notice period.
Features :

Curved, streamlined appearance for high quality visual sensation
Computer-monitored for better control of Machine in real time
Servo-driven for more stable vibration frequencies and control with better accuracy
Highly Sensitive temperature control, automatic PID calculation and computer transmission for better temperature control
Direct heating ensures constant temperature and accelerates heating and warming rates.
Heating from room temperature to 190^oC in 8 minutes
Time needed for changing temperature settings: < 3 minutes from 170^oC to 190 ^oC ; < 4 minutes from 190 ^oC to 170^oC
Warming up to the set temperature in less than 1 minute during testing with +0.3 ^oC Compensation control range
Light-weight upper and lower dies for easy installation and removal
Windows-based user interface is easy to learn and use and equipped with powerful analysis functions
Interface is provided with multiple languages for the user's choice
Modular database is easy to use and build
Data Sampling rates are high and therefore possibility of lost data is low
Capable of importing and exporting report in formats of Excel, word, html and PDF, making it easy for data transmission and storage
Complete data Storage for reanalysis and confirmation, thus preventing human errors

Technical Data

Model	2556
Standards	ASTM-D5289 , ISO-3417 , GB-TI6584
Die type	Unseal die : accurate and free adjustment of clearance between deis is allowed
Temperature control	Computer control through connection, PID, SCR control
Temperature range	Room temp. -200/170Deg.C~190Deg. C
Temperature	Temperature compensation range ±0.3Deg. C; minimum reading : 0.1Deg. C
Vibration frequency	100 cpm (1.66 Hz) ; Seravo motor driven
Vibration angle	±0.5Deg. , ±1Deg. , ±3Deg.
Torsion range	Elasticity : 1-200 Ib-in/viscosity : 0.3 – 200 Ib-in
Drive motor	AC motor imported from Japan
Standard accessories	Standard torsion calibrator pair of gloves, screwdriver
Standard attechment	Computer system (TFT color moniter, hard drive, color ink jet printer)
Program	Available in chinese (both traditional and simplified) and English
Air Pressure	4.6 / cm' (0.46 Mpa) (buyer to provide air compressor)
Power supply	1 É¸ , AC 220 V ± 10% , 50/60 Hz ± 3 Hz , 10A
Dimension (WxDxH) CM	Machine : 58 x 72x 172 ; computer desk : 90 x 63 x 105
Weight (kg)	300

M.D.R Functions :

Die Type	Unsealed	Sealed	Unsealed	Sealed
Model	2556	2556	2556-F	2556-FS
Foaming	--	--	√	√
Servo Drive	√	√	√	√
Vulcanization curve	√	√	√	√
Viscosity Curve	√	√	√	√
Visco-elastic torque curve	√	√	√	√
Kinetic loss angle curve	√	√	√	√
Vulcanization rate curve	√	√	√	√
Foaming pressure curve	--	--	√	√
Foaming rate curve	--	--	√	√
