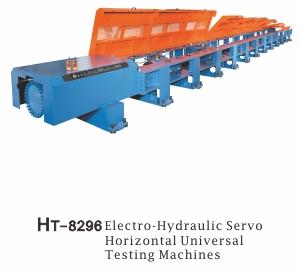

We are a renowned Manufacturer and Supplier of HT-8296 Material Testing Machine from Malaysia. The Horizontal Tensile Testing Machines offered by us are used for testing objects like wire, cable, connecting rod, steel wire, steel cable, steel link, metal chain, chain assembly, spring, webbing, rope, anchor chain, hook, piping, metal fasteners, etc. Buyers can obtain the Tensile Testing Machines at affordable rates from us.
Applications :
Suitable for testing longer specimens like wire, cable, connecting rod, steel wire, steel cable, steel link, metal chain, chain assembly, spring, webbing, rope, anchor chain, hook, piping, metal fasteners...etc.
Confirming to most international standards like ISO 7500-1, EN10002-2, BS 1610, DIN 5122, ASTM E4, JIS 7721 / B 7733, GB 228-2010, JJG 139-1999, CNS-2111, 9471, 9470...etc.
Measurement Device :
Hydraulic control system or servo control hydraulic system. Apply high accuracy load cell.
Testing gain force autoamtic switching function ; if the capacity reach 100%, it automatically witch the large capacity.
Accutacy : <+1%, Load resolution : 1/200, 000 above
Display a variety of experimental curves : Load-Elongation, Load-time, Elongation-Time, Stres-Strain
Control System :
Super powerful control function, with high intelligent computer system
Closed-loop servo hydraulic control system
Control mode
Fixed displacement
Fixed Velocity
Fixed load
Constant load speed
Constant strain speed
Constant stress speed
Stress > Strain Speed
Fixed velocity > Load
Fixed velocity > Displacement
Fixed Velocity control range : Origin Point ~ Max. Stroke Setting range : 0.5 ~ 80 mm/min
Control Mode of operation :
Auto / Manual function available to switch off
Emergency shut down button & overload protection (auto stop) functions equipped
Setting of testing parameters : Database modularized
Fixed velocity load control range : Full Capacity 5 ~ 100% (F.S.)
Data Processing System :
Data acuqisition and data-analysis / Clarification
Available to backup and modify the write / read path of database.
SI unit and other conversion unit : N, kN, g, kg, ton. Ib for force : mm, cm, inch for length.
Self-defing testing modules based upon any kind of standard test norms.l
Software password security protection (optional)
X Bar-R engineering diagram and SQC quality control diagram (optional)
Various kinds of software providing data manipulation and analysis.
Customers List for Reference :
Change Tai Enterprises
Yuen Hui Industries
Fujikura Federal Cables (Malaysia)
Ho Chi Electric Cables
Ming Long Enterprise
Ta Fang Ropes
Red Wood Industries
Beaver Sales Pty ltd (Australia)
Sunrise Technology
Chung Hwa Cable
Tateng Enterprise
PT spanset
PT Sicamindo
Kinnizi Thailand
Binsoon Enterprise
Mecon, India
HT-8296 Series | HT-8296H30 | HT-8296H50 | HT-8296H100 | HT-8296H200 | HT-8296H300 | HT-8296H500 | HT-8296H1000 | HT-8296H1200 | HT-8296H1500 | HT-8296H2000 |
Capacity | 300Kn | 500kn | 1000 kn | 2000 kn | 3000kn | 5000kn | 10Mn | 12mn | ` 15mn | 20mn |
Load Accuracy | Class 1 + 1% (or optional class 0.5 + 0.5%) | |||||||||
Load Resolution | 1/200, 000 abobe (apply Hung Ta HT-0906 Interface card system) | |||||||||
Control Model | A type : HT-8296 Servo Hydraulic Control, B type : HT-8296C Manual Hydraulic | |||||||||
Testing Length (m) | Standard is 4 meter, other length by custromize | |||||||||
Standard Section length for addtion | Each section is 5.5 meter, length of front pin hold to rear pin hold is 0.5 meter (or upon request) | |||||||||
Cylinder Stroke | 500mm / 750mm / 1m/1.5m/2m (Depends on the elongation of testing samples x testing length - optional) | |||||||||
Testing Speed (mm/min) | Metal : Max 80mm / min, Rope or Ribbon Max. 150mm / min (Special Speed can be specified) | |||||||||
Effective Testing Width (mm) | 500 | -- | -- | 600 | 800 | 1000 | 1100 | 1100 | 1500 | |
Effective Testing Height (mm) | 500 | -- | -- | 600 | 700 | 800 | 900 | 1000 | 1200 | |
Hydraulic Power System | A Type : Servo Control or B Type : Electrmagnetic Control (Selectable) | -- | -- | -- | -- | -- | -- | -- | -- | -- |
Limit Device | Upper And lower limit device for hydraulic cylinder | -- | -- | -- | -- | -- | -- | -- | -- | -- |
Tensile Grip (Optional) | For metal & Wire Samples : Wedge holder with Jaw plate for plane and rod For Webbing & Rope : Pin-Thru holder with pins of Ø50mm (or upon request) For others : Special Design and manufacture as per actual size of test samples | |||||||||
Moving space for Rear Grip Stand (mm) | Standard 500mm (Customize : for Special request) | |||||||||
Control Box (WxDxH) (mm) | 1200 x 670 x 1000 | |||||||||
Power | 3-Phase / 220V / 60Hz or 3 - Phase / 380 ~ 415V / 50 Hz | |||||||||
