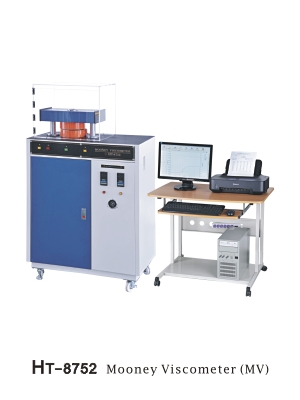

0-50Hz HT-8752 Mooney Viscometer, Brand Name : Hung ta

₹ 13.58 Lakh - ₹ 16.29 Lakh / One

Frequency0-50Hz
StandardDIN
Brand NameHung ta
CertificationISI Certified
Supply TypeManufacturer, Supplier
Preferred Buyer Location All over the world

Product Details

ApplicationMooney viscosity
Voltage TypeAC
Automation GradeSemi Automatic
Country of OriginTaiwan
Brand NameHung ta
Power1 ɸ , AC 220 V 1.2KVA , 50/60 Hz
Number Of FlowerMooney Viscometer
CertificationISI Certified
FeatureAccuracy
ConditionNew
Frequency0-50Hz
StandardDIN
Total Carbohydrate1yr
TemperatureHigh Temperature
Disc holding pressureApprox. 1173 ± 0.581 kg
Electric heating padEmbeddad Heating Coil, 550 W x 2 sets
OptionPrinter, Air Compressor
Heating systemElectric Heating
Mooney viscosity200 M Max.
Pressure systemAir Pressure (compressed air)
RotorL-Type and S-Type
Operating pressure7 kgf/cm square (bar) Max., 3.8 kgf/cm square in general
Rotor rpm2 ± 0.02 rpm
Specimen size45 x 9~12mm (diameter x thickness)
Temperature range200 Deg. C Max
Weight (kg)260
Dimensions (W x D x H) CMMain unit : 80 x 45 x 140 ; Computer Desk : 90 x 63 x 105
Motor drive25W, 200/220 V, 50/60 Hz, 1500/1800 rpm

This unit is used to test the properties of natural rubber, including Mooney viscosity and Mooney scorching.
Full computer control, capable of displaying Tq3, TQ5, TQ18, TQ35, TS1 and TS2
Automatic Measurement System

Viscosity Sensor - Strain Gauge
Mooney viscosity calibration - Fuzzy logic computer system.
Manual / auto switching system for easy learning and operation
Full computer control, pull-down menu, displays in dialogue box and control system
Monitoring throughout the entire test; what you see is what you get. Automatic calculation, printing and saving are possible.
Capable of calling the curves desired 4+1 minutes and 1 minute of recovery time for viscosity and rubber, respectively, and time needed for rubber scorching Tq3, Tq5, Tq18, TQ35 by Ts1 and Ts2
Capable of saving and calling test conditions to save time
Allowable tolerance for test curves is user-definable for complete control of test subject quality.
Capable of calling any curve for comparison and displaying the viscosity of any point on the curve
The user may select multiple test values for averaging.
Test may be terminated according to test requirements. The user may ask for test data or just cancel the test.
This unit is designed to ASTM D1646, Bs1673, ISO-289, JIS-K6300 and CHS 10273 and 10274.
