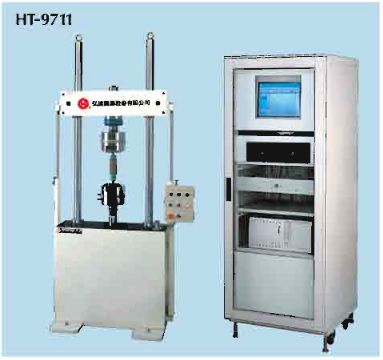

HT-9711 Dynamic Fatigue Testing Machine

Product Details

Control modeForce, displacement control
Static force sensor capacityx 120%, x100%, x50%, x20%, x10%, (Auto Gain selection)
Power sourceElectro-Hydraulic Servo Control System
Operating height(mm)250-900
Operating width(mm)400
Max Stroke (nm)Static- ±50, Dynamic - ±25
Dynamic force sensing error<= ± 1 % Calibration error
StyleT type
Frequency RangeLVDT built in actuator, 0.05~100Hz
Dimension (cm)120 (W) x 65 (D) x 220 (H)
Force capacity500 Kg, 5 KN
Dynamic force sensor capacity100%, x50%, x20%, x10%
Static force sensing error<= ± 1 % Calibration error

Hydraulic Power Type	QR-10	QR-20	QR-40	QR-60	QR-80
Minimum Flow Rate (I/min)	10	10	40	60	80
Servovalve Rated Flowrate (I/min)	15	15	45	80	120
Displacement Sensor	1 L / 1L		1 L / 1L
