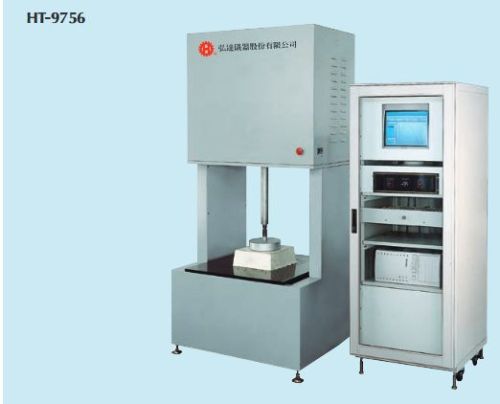

HT-9756 Computer Servo Control Hardness Testing Machine

Test spaceWidth : 750 mm, Height : 540 mm
Speed0.6~600 mm/min (computer control)
MotorServo motor control system
Capacity200 kgs
Supply TypeManufacturer, Supplier
Preferred Buyer Location All over the world

Product Details

MotorServo motor control system
Vertical dist. Between Base and working table560 mm
Test spaceWidth : 750 mm, Height : 540 mm
Capacity200 kgs
Size of compression plateØ200, Ø150, Thickness 50 mm (Aluminum))
Speed0.6~600 mm/min (computer control)
Test vent of compression6 mm, Hole-center distance: 20 mm, Vent table size : 400x400 mm
Testing stroke390 mm
Size of working table70x70 cm, Thickness - 15 mm (Aluminum)
Power source1P 220 V 50 Hz /60 Hz

Inside the chairs of cars or motorcycles, the major filling is compounded foam. The quality of the foam matters the comfortability. This tester adopts the type of computer control to measure it original thickness of the foam. Compress 75% for its original thickness, release and then re-compress 25% for its original thickness and sustain for 20 seconds. After that, record its force and which is the hardness of this compounded foam.
