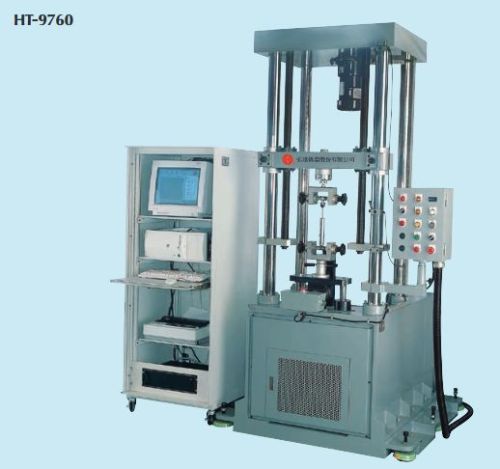

HT-9760 Damper Testing Machine

Power3Ø, 220 / 380 / 415 V, 50/60 Hz
AvailabilityAround 1500 kgs
Vibrating load1,2,5 tons or upon request
Vibration acceleration(v)0.05 ~ 1.0 m/sec depending on axle rotating speed)
Supply TypeManufacturer, Supplier
Preferred Buyer Location All over the world

Product Details

Power3Ø, 220 / 380 / 415 V, 50/60 Hz
AvailabilityAround 1500 kgs
Vibrating load1,2,5 tons or upon request
Vibrating rotation (n)1.5 ~ 400 rpm
Up-down speed adjustment300 mm/min
Testing space700 mm
Vibration acceleration(v)0.05 ~ 1.0 m/sec depending on axle rotating speed)
Dimension of main frame130 (W) x 110 (D) x 243 (H) cm
Vibration stroke (d)0 ~ 80 mm

This tester is for testing the damping strength of shock absorbers. Available to test the shock absorbers for car and motorcycle and even truck, but only for rear shock absorbers for bicycle. Normally the specifications are different depending on different test requirements. Hereunder are the standard specifications for this model.
