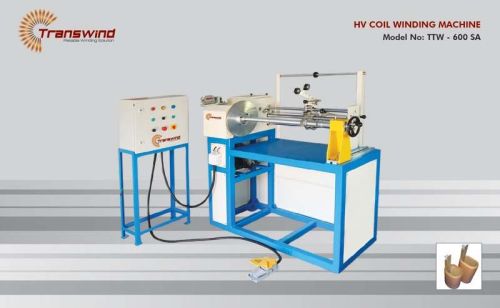

Contact SupplierWe are offering ht winding machine. Technical specifications:
1. Number of spindle : single spindle side loading
2. Winding spindle speed : 0 to 350 rpm( variable)
3. Winding motor :ac induction geared motor with direct drive
4. Winding mandrel : manually operated collapsible type rectangle mandrel
5. Swing diameter of coil : 500 mm (max)
6. Max length of coil : 600 mm (max)
7. Coil weight : 100 kgs. (max)
8. Coil type rectangle, round and square type coils.
9. Conductor : 1 to 3 mm round wire(dpc)
10. Traverse motor : ac motor with ball screw rod
11. Winding width : 600 mm (max)
12. Centre distance : 840mm (i.e. From face plate tailstock plate ) tailstock : vertical axis sliding by 175mm
