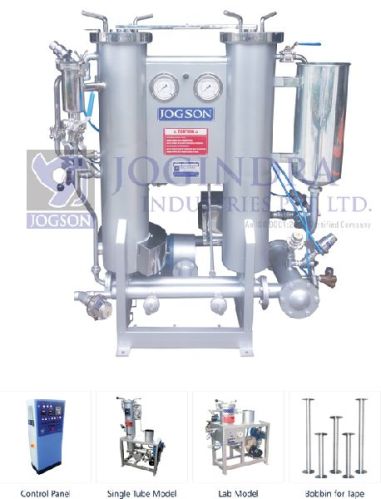

HTHP VERTICAL TUBULAR DYEING MACHINE

JOGSON has Developed Economical & Eco Friendly Tubular Type Dyeing Machine for capacities from 1 kg. to 40 kg. per batch. This machine is specially designed for samples and small lots to check the dyeing recipes used in production. Yarn Dyeing Industry also needed a versatile sample dyeing machine for their lab and R&D, so we developed Multi Pot sample dyeing machine to cater their need. JOGSON Multi Pot Sample Dyeing Machine is ideal to run 2, 3 or upto 6 Pots coupled to each other, dyeing yarns of same colour or running individually to dye yarn of different colour at same time. Each pot has a range from 100 gms. to 1.5 kg. per batch It is often required in the dyeing industry to get a sample approved from the customer. So HTHP Vertical Tubular Dyeing Machine & Multi Pot Sample Dyeing Machine provides the best solution to produce the required amount of coloured sample which in turn helps to save expensive materials & unnecessary production loss. The machine is suitable for dyeing of Polyester, Cotton, Viscose, Nylon, Acrylic, Texturized, Silk, Wool, etc. in various forms like Cone, Tape, Narrow Fabrics, Zipper, Hanks, Ribbons, Tops & Loose Fiber.

• Machine body & all parts coming into contact with the dye liquor are made of AISI SS 316Ti/316L, highly corrosion resistant
• Turbo pump for liquor circulation (In-Out & Out-In) with Inverter drive for varying speed
• Control panel with JOGSON dyeing programmer TPR13/PLC & touch interface (Optional)
• Ultra low MLR of 1:3
• Air pad system to insert air manually into the machine to create static pressure and to minimize the liquor ratio
• Colour addition tank with Injection Pump for dozing the dye liquor into the machine
• High efficient heat exchanger which has no heat loss to the ambient
• Variable loading with flexible loading spindles or capacity reducing dummies
• HT Drain - the machine can be drained at 130° C
• Sampling pot to check the dyeing result while machine is in operation
• Pneumatically operated front door locking / unlocking
• Human/Machine safety interlocks

• Compact arrangement of JOGSON turbo pump, heat exchanger and piping is the main key to floor space saving
• Ultra Low MLR of 1:3, consumes less dyestuff, chemicals, steam, water & produces less effluent discharge, hence it’s ECO friendly & reduces the Production Cost
• Inverter driven turbo pump for variable flow control; saves upto 40% power consumption hence more Energy Efficient
• HT drain at 130°C for oligomers elimination during polyester dyeing process
• Variable loading with dummies maintains constant MLR & Flow Rate
• Excellent dyeing result and levelness, reduces yarn loss
• Water level, pressure, distinctive temperature multiple safety interlock, ensure operational safety

• Maximum design pressure 5 bar
• Maximum design temperature 140°C
• Heating gradient 25°C - 130°C approx at 5°C /min. (Dry Saturated steam pressure at 7 bar)
• Cooling gradient 130°C - 85°C approx at 3.5°C/min. (Cold water of 25°C at 3 bar)
