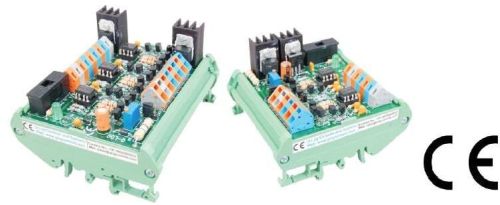

TTL to HTL HTL to TTL converter 1000KHz: This is TTL to HTL or HTL to TTL converter or differential to single ended converter or Single ended to differential converter.This module receives three differential signals viz +A,-A,+B,-B,+Z,-Z signals (3-10 VDC or 10-24 VDC PP) and converts differential signal in to single ended signals A,B,Z.Pulse amplitude of output pulses is adjustable from 4.0 VDC to 24 VDC using a preset.In reverse way the module receives three signals A , B ,Z w.r.t. GND and converts the single ended signal in to differential signal (+A,-A) (+B, -B) and (+Z,-Z) ,the differential voltage is adjustable from 4.0 VDC to 24 VDC.Three point converter is for 3 signals and 2 point converter is for 2 signals.
Features:
. Output of type Source Sink Push Pull in single module.
· Input in the range 3-10 VDC and 12-30 VDC (Peak to peak voltage)
· Minimum Driving current: 1.6 mA
· Supply voltage:24-30 VDC@300mA
. Output pulse train voltage adjustable from 4 � 28 VDC by preset
· Maximum input frequency 2000 KHz
· Reduces high frequency noise and gives clear square wave
