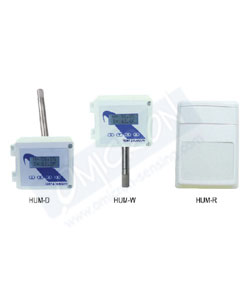

Contact SupplierHumidity & Temperature transmitters are designed for environment monitoring and controlling in industrial, commercial and other buildings. These transmitters can be used for indoor air temperature and humidity monitoring in various indus- trial plant, clean room, lab, machine room, office and commercial building, airport, station, library and stadium.
Special Features :High performance digital sensors and circuits, ensure accurate measurement and temperature compensation | |
Good long term stability and reliability | |
100% field changeable sensors, no re-calibration needed | |
Fast response | |
Multiple output signals selectable: 4-20mA, 0-5V or 0-10V | |
Display in degrees Fahrenheit or Celsius (connection to Modbus) |
Â
Relative Humidity: | ||
Sensor | : capacitance polymer | |
Range | : 0~100% non condensing | |
Output | : 4-20mA, 0-5V or 0-10V, RS 485 | |
Accuracy | : 3% RH (25°C, 20~80% RH) | |
Hysteresis | : < ±1% RH | |
Response time | : < 10s (25°C, in slow air) | |
Drift | : < ±0.5% RH / year | |
Temperature: | ||
Sensor | : 10K internal | |
Range | : -30~70°C(-22~158°F)/transmitter | |
Output | : 4-20mA, 0-5V or 0-10V, RS 485 | |
Accuracy | : < ±0.5°C @ 25°C | |
General: | ||
Power | : 12 to 24V AC or DC, ±10% | |
Current Output Load | : < 500 | |
Display | : LCD screen for wall / outdoor mount and duct mount | |
Display Resolution | : 0.1°C, 0.1% RH | |
Temperature Limit | : -30~70°C, 0~95% RH(Non condensing) | |
Plastic Housing | : Flammability rating UL 94V0 file E194560 | |
Protection | : IP65, outdoor rated for duct and wall mount models; IP30 for room mount |
