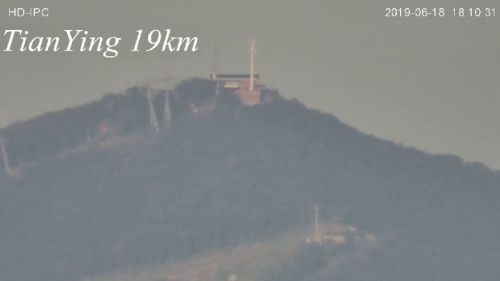

Human 13km Tank 20km 2MP 12.5~800mm Coaxial Zoom Day Sight TV Camera

China TianYing HD800P 20km tank achromatic surveillance security camera is the world's leading long focal length high precision coaxial continuous optical zoom CCTV camera,the camera adopts achromatic lens design, especially in the aspect of long focal length, to eliminate the defects that have plagued optics for years. The definition of telephoto is more than twice that of traditional achromatic design.

This achromatic lens with a variety of AI intelligence technology: high precision automatic focus, 3 times defog, data transmission functions etc. Designed and manufactured according to the military grade, the coaxiality to achieve the measurement level, which is conducive to remote tracking target; It can adapt to high and low temperature military environment without heating, but has outstanding shockproof and anti-corrosion performance.

The camera is unprecedented lightweight design, compared to the traditional size of the lens volume cut in half, so as to facilitate integration into the electro optical system, this is in line with the electro optical system high-precision lightweight development direction.

Features: 1. Achromatic design is image clear and sharp with high color saturation, including long focal edge image.

2. Focus no shift design, including zoom process, switch spectrum and switch mode.

3. Coplanar design with 400nm~1100nm spectrum.

4. Perfect circuit configuration with rapid auto focus, 3x supper defog, lens preset and lens position output.

5. Fast smooth zoom with stable real-time image and no image blackout.

6. Precisely alignment target with full zoom due to high precision coaxial zoom optical axis.

7. 12.5~800mm focal length pure optical zoom and AI intelligence design, strive every second for sighting.

8. Compact light weight ruggedized design, option hermetically sealed house.

Recommended Use:

1. Long range high accuracy measurement aiming.

2. Long range high accuracy weapon sight.

3. Long range high accuracy defense.

4. Long range high accuracy target tracking.

5. Anti-missile.

6. Long range aerial photo.

Question: 1, Why normal long focus CCTV camera can not see tank 10km? such as 400mm focus, 500mm focus etc. Because their focal length is not pure optics, their long focal image definition is bad, or their defog is bad, normal long range have fog, especially the sea and the jungle. 2, Why the 2MP camera image is better than some 12MP and 15MP camera? Because the camera is achromatic design that is image clear and sharp with high color saturation, including long focal edge image. 3, Why many 750mm focus/1000mm focus/ 1200mm focus CCTV surveillance camera is only used for 3km-5km laser rangefinder?

Because their optical axis can not be precision alignment target, such as 2mrad accuracy is 2m for 1000m distance and 6m for 3000m distance.

then their camera can not shoot 3km vehicle, so their laser rangefinder task is only roughly measurement.

4, Why the 2MP camera price is much higher than normal CCTV camera?

Because the camera is coaxial zoom with achromatic, rapid auto, supper defog, wide spectrum, shockproof and compact size, also image quality can compete with some SLR camera.

HD800P 2MP 12.5mm~800mm coaxial zoom Surveillance Security Camera Specifications:

Model
HD800
HD800P
Performance
Detect range
Approx 13km for human, Approx 20km for 6m x 3m vehicle/boat
Recognize range
Approx 8km for human,   Approx 18km for 6m x 3m vehicle/boat
Sensor
Effective Pixels
> 2 Megapixel
Resolution
1920 x 1080 pixels
Pixel Pitch
1/1.8 inch
Frame Rate
25Hz/30Hz.
Minimum Illumination
0.01Lux
Optics
Wavelength range
400nm ~ 1100nm
Field of View,°
38.4° x 20° ~ 0.56° x 0.32°
Focal Length
12.5mm~800mm, 64x Optical Zoom.
Aperture
F11.7
Close-up distance, m
5m
Focus
Quick automatic with no shift, including switching mode
Achromatism
Yes
Supper defog
Yes
Optical axis precision consistency
64x optical zoom time + focus time
Approx 10 seconds with basically real-time focus
Input / Output
Power supply
DC12 600mA
Video output
Analog, HD-SDI, HDMI
Network
LAN
Image Control
Control
button
Control interface
RS422
Environmental Adaptability
Operating Temperature,°С
-40°C to +60°C , temperature shock 5°/min
Storage Temperature
-50ºC to +70ºC
Physical
Dimensions and weight,  with house
Approx 435mm  x 200mm x 160mm, Approx 11kg.
Dimensions and weight,  without house
Approx  380mm x 172mm x 130mm, Approx 7kg.
Packing and Warranty
Standarding accessories packing
 hard case, user's manual, video cable, power cable
Warranty
1 year warranty and free lifetime maintenance.
Note: *- Technical information is subject to change without notice. ** -Depending on the region of sale.
