Human Machine Interface

A Human Machine Interface (HMI) is a platform which permits interaction between users and automation equipment. Caas HMI products provide various communication ports for fast communication and convenient control of a diverse range of machines, systems and facilities. The color touchscreen enables intuitive parameter entry and a variety of ways to display variable data, including trend graphs and alarm elements. The high resolution LCD display visualizes operating, monitoring and efficient control in real time. In addition, the user-friendly editing software guides users in quickly creating easy-to-navigate visual icons and easily designing intuitive monitoring screens for applications, while making adjustments, scheduling, and programming operational sequences that enhance flexibility and save development time. This achieves rapid system development that simplifies wiring and installation, saves operating expenses, and makes systems more efficient, eliminating time-consuming adjustment and additional maintenance costs.

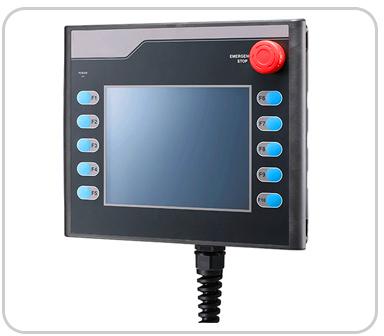

The HMC Series is a new and advanced human machine interface which has additional built-in PLC functions for sequence control. To make high precision control and high level performance possible, the HMC Series is equipped with two high-speed CPUs which ensure the execution efficiency and the performance of the system when running large and complicated PLC programs.

 4.3-inch (480 x 272 pixels) TFT LCD 65536 colors Pills
 2 sets of COM ports, supports RS-232 / RS-422 / RS-485
 For data transfer/download: RS-232, USB, Ethernet
 Supports Ethernet
 Complies with IP65 standard
 Supports horizontal / vertical display
 PC editing software, DOPSoft is compatible with operating systems: Windows XP, Windows Vista, Windows 7
