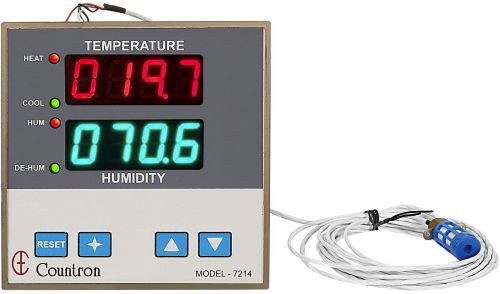

Humidity AND Temperature Controller 96mm X 96mm. Depth 50mm

HUMIDITY/TEMPERATURE CONTROLLER
Model 7214

Features

 Bright 7 segment, 4 Digit Green Display for Humidity and 4 Digit Red Display for Temperature

 4 separate Limits and Solid State Relay (SSR) outputs for Heater, Cooler, Humidifier and De-Humidifier.

 Proportional (PWM) SSR outputs for Heater and Humidifier with user settable Percentage Power

 On/Off SSR outputs for Cooler and De-Humidifier with user settable Hysterisis

 Digital Offset control for Temperature and Humidity

 Capacitive sensor for 0-100% Humidity and -20 ̊C to +80 ̊C

 Non-Volatile memory to hold settings and counts

Specifications

 Display : 4 Digit, 7 segment Green LED display (0.56” height) for Humidity
                  4 Digit, 7 segment Red LED display (0.56” height) for Temperature

 Range : 0-100.0% for Humidity (in 5 ̊C to 50 ̊C temperature range) -20.0 ̊C to +80.0 ̊C for Temperature

 Set Limits : 0-100.0% for Humidifier , 0-100.0% for De-Humidifier, -40.0 ̊C to +100.0 ̊C for Heater, -40.0 ̊C to +100.0 ̊C for Cooler

 Percentage Power: 0-200% for Set Limits of Humidifier and Heater.

 Hysterisis : 0-9.9 for De-Humidifier and Cooler

 Digital Offsets : -19.9 to +19.9 for Humidity, -19.9 to +19.9 for Temperature

 Sensor Supply : 5V DC

 SSR Outputs : +12VDC outputs Heater, Cooler, Humidifier and De-Humidifier

 Memory Retention: 10 years

 Mounting : Panel Mounting

 Size : 96mm x 96mm. Depth 50mm

 Weight : Approx. 375 gms.

 Operating Temp. : 0-50 ̊C

 Humidity : 95% RH
