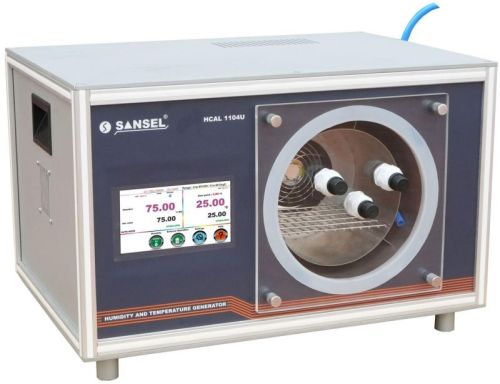

Sansel Humidity And Temperature Generator

Brand NameSANSEL
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

SANSEL Model HCAL 1104U – v2 Humidity and Temperature Generator is to perform a rapid & easy calibration of portable instruments, sensors, Transmitter and data logger of different....

View More Details

Send Enquiry

Company Information

Sansel Instruments And Controls

Maduravoyal, Chennai, Tamil Nadu

4.6/5

(28)

View Number

Member Since 17 Years
Nature of Business Exporter
GST No. 33APGPS4066M1ZG
Company Video

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

SANSEL Model HCAL 1104U – v2 Humidity and Temperature Generator is to perform a rapid & easy calibration of portable instruments, sensors, Transmitter and data logger of different manufacturers. Solid state Heating & Cooling technology with high performance humidification system, generate precision chamber stability & uniformity gradient range from 5 to 60°C(Temp.) / 5 to 95 % RH*(Humd.) / -25 to 40°C(Dew point)
Features

7” True colour TFT display with Touch screen
Control range from 5 to 60°C(Temp.) / 5 to 95 % RH (Humd.)/-25 to 40°C(Dew point)
Semi Portable & Rugged
High Resolution 0.01 °C / %RH
Stability better than ± 0.05°C / 0.2 % RH
Better uniformity ± 0.2°C / 0.3 % RH
Fast raising & quick settling
Improved design to provide better thermal performance in term of control stability & temperature gradients
Inter changeable front door to suit different manufacturer’s indicator, sensor, transmitters

Accessories

Basic Instrument
External Humidifier system-weight 6kg(approx.)
Desiccant cells – 2nos
Molecular sieve Desiccant – 2kg
Interchangeable Acrylic door (plain)
Spare fuses
Instruction manual
Mains card
Traceable calibration certificate

Optional

Precision Portable Hygrometer with sensor – Model : HTD 200
Additional Molecular sieve Desiccant
Additional Interchangeable Acrylic door (custom special holes)
Carrying case

Specifications

Model	HCAL 1104U – v2
Control Range	Temperature : 5 to 60°C / Humidity : 5 to 95 % RH @ 25°C/ Dew point : -25 to 40°C (psychometric Converted Dew point)
Resolution	0.01 °C / %RH
Stability	Better than ± 0.05 °C / 0.2 % @ 25°C
Uniformity	± 0.2 °C / 0.3 % RH @ 25°C
Display	7” True colour TFT LCD Display with Touch screen
Test sensor insert port	Inter changeable Acrylic door Provided on front side of the chamber with pg21 gland (cable or sensor size range from 13 to 18mm) x 3nos
External Humidifier Water tank capacity	6 liters (approx.) (NOTE : 3 liter filling is enough for our application)
Humidifier Liquid	Distilled water
Humidifying Time	2 %RH / sec (50 to 90 % RH)
Dehumidifying Time	6 %RH / sec (50 to 10 % RH)
Test chamber area	230mm DIA x 170mm Depth (Approx)
Power supply	230V AC ± 10% / 50Hz (Optional 110V AC)
Power Consumption	1000 VA
Construction	Inner chamber SS 310 / outer MS powder coating
Overall Dimension	436mm L x 676mm W x 368mm H (Approx)
Instrument Weight	44 kg(without Accessories) + 6 kg (standard accessories) (Approx.)
