Temperature control modeHeating technology of constant temperature plate in liquid bath
Control sensorsPrecision platinum resistance temperature sensor, Potronic temperature and humidity sensor
Weight450 kg
Temperature range5℃~55℃ -5℃~65℃ -15℃~65℃, -20℃~65℃, -30℃~65℃,
Studio interior dimensions(mm)820 × 800 × 510
Dimensions(mm)1700 × 1000 × 1300
Humidity fluctuation≤±0.8 RH (20℃) Special indicators customizable
Observation window/operation hole3 viewing windows ,2 operating holes
Temperature fluctuation≤±0.1℃(@15℃,@20℃,@30℃) Special indicators customizable
Display7-inch HD Touch
Temperature uniformity≤0.3℃(@15℃,@20℃,@30℃) Special indicators customizable
Wet control modeHumidity in shunt
ShellAcid pickling spray
Humidity uniformity≤1.0% RH (20℃)
Resolution0.01%RH
Power supplyAC220V±5%50 Hz Peak power 5 KW Typical power 3 KW
Products Description

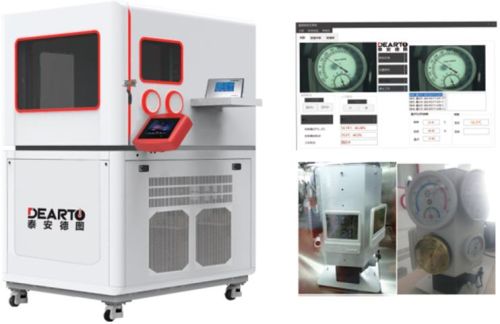

DTSL Series Temperature and Humidity Calibration Chamber is used to examine some dedicated devices like hair temperature and humidity indicator(meter),dry and wet blub temperature and humidity meter,digital temperature and humidity meter,temperature and humidity transmitter and so on.The device is accurately measured by the temperature and humidity sensor and controlled by the industrial programmable controller,which can realize the automatic adjustment of the humidity in the temperature and humidity check box.With high control and test accuracy,it provides continuous,reproducible humidity measurement for scientific research and product testing.
Main features
Advanced technical principles * Humidity control adopts the principle of moisture occurrence by shunt method, which greatly shortens the time required for stability and improves the verification efficiency compared with the principle of humidity occurrence by double temperature method.
* Temperature control using liquid bath constant temperature plate heating technology, liquid medium heat radiation, temperature more constant, temperature field more uniform * The unique air circulation design in the measuring chamber ensures no dead angle air flow, and adopts frequency conversion technology to speed the fan to ensure that the internal temperature field is uniform at low speed;
Product intelligence： * Integrate metering technology with IoT technology,wifi remote control,making metering easier * High-definition touch screen control,multi-touch,greatly enhance the user experience, * One-button start,fully automatic control,shorten the training period for metering personnel * Time switch machine,remote switch machine,save time and improve verification efficiency Excellent quality * The shell adopts thick plate phosphating, passivation, spray molding, anticorrosion, rust prevention, salt spray resistance; * SUS304 for internal bile * High precision sensor, temperature and humidity control with imported high precision platinum resistance Rotronic humidity sensor Upgraded to Automatic Verification System * With intelligent image acquisition system, dew point meter and industrial control computer, it can be upgraded to intelligent temperature and humidity meter automatic verification system to realize the automation of verification process, the automatic preservation of records and the automatic generation of reports. The metering personnel are liberated from the reading recording of the temperature and humidity meter, which greatly improves the verification efficiency and reduces the labor cost.
Product Function
* HD touch screen: high resolution capacitive screen, clear display, multi-touch support, in line with customer touch operation habits * Wifi control: remote setting of temperature and humidity, starting and stopping equipment, reading current temperature and humidity values and fluctuation status of mobile phone / pad * Status Tip: Real-time calculation and display of temperature and humidity fluctuation, stable state prompt, U disk insertion detection, wifi connection prompt * Curve display: temperature and humidity curve real-time display, support touch zoom translation operation, one-click screenshot save curve to U disk * Data record: temperature and humidity data automatically saved to xls format, one key exported to U disk * Timing boot: with timing boot function, can achieve the equipment before work timing boot, immediately after work, no need to wait. * Multi-point calibration: support temperature and humidity sensor multi-point calibration, temperature sensor indication can be segmented multi-point correction to ensure consistency with the standard device. * Segmental control: * Fan speed regulation: * Multiple protection alarms: * Communication expansion:
Additional Information
Payment Terms T/T
Port of DispatchJINAN,QINGDAO FROMCHINA
Packaging DetailsPackaging & Shipping Packaging:-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;-Both neutral and customized packaging can be available.Shipping:-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent. Shipping method: Note Express: Door to door, very convenient, don't need to clearance or pick-up By air: Airport to airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you. By sea: Port to port and you need to do the customs clearance and pick-up the goods at your local port, which you can have a local shipping agent to do for you. Our Services Warranty & Service:Pre-service24 Hours online service for your consult.Help choose right model,and a series of service,person,advise. Middle service--Give you best offer--Provide discount for many sets order--Do customer's request:--Choose payment term you convienent.--Promptly production and delivery,inform you in time.--Can provide invoice value as you like to decrease your tax. After sale service --1 year warranty service and all life maintenance.--Technical Egineer are avalible for oversea trainning.--Free change for some parts--Remote control technical consult--Free installation DVD--Maintenance plan
Delivery Time7-14DAY
