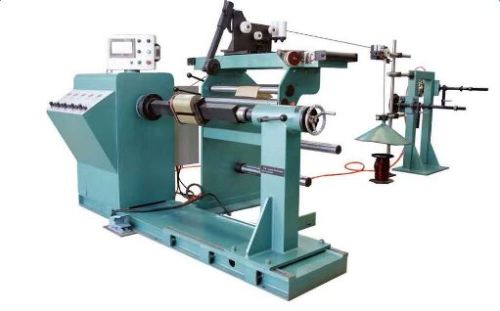

Sea HV Copper Wire Coil Winding Machine, Brand Name : Dirake

Usage:
widely used in distribution transformer, dry transformer,reactor and similar process of hv coil winding.
Composition:
winding host
automatic wire guide traversing mechanism
insulation layer decoiler
round wire and flat wire decoiler with tension control
plc control
operation touch screen
pneumatic system and foot pedal
technical parameter:
model
grx-800
general
dimension
2550ã�2180ã�1980mm
weight
1000kg
power supply
3ã�220(380)(415)v 50(60)hz for you need
whole power
5 kw
coil
coil diameter
80-600mm
coil width (max)
800mm
coil weight(max)
500kg
coil cross section
round,oval,rectangle
conductors
round wire diameter
î¦0.3mmâ��î¦3mm
flat wire
3ã�12mm
winding shaft
speed adjustment method
frequency stepless control
rotation speed (max)
240rpm or 450rpm
torque
300nm
traverse type
ac servo motor driven with ball screw,gap between each turns 0.01mm
wire traverse width
700mm
