HVM Bi-folding Speed Gate

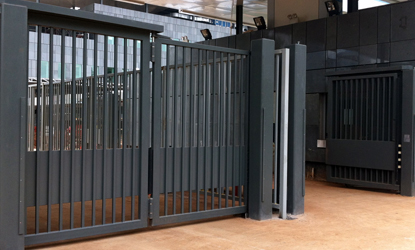

The Zaun Terror Stopper PAS 68 Bi-Folding Gates consists of a post upon which a bi-folding leaf is hinged on to. Successfully impact tested to PAS 68 stopping a 7.5 tonne vehicle with zero penetration and remained fully functional after impact.

These PAS 68 Bi-Folding Gates are available in either tracked or trackless options. In the trackless option the PAS 68 bi-folding gates do not require any in ground or overhead tracks to fold the gate in half. This gate instead uses an in-house folding system housed inside the casing on top of the post hung leaf. In the tracked option, tracks are installed either over head or in ground to fold the gate in half.

The post hung section is driven by a torque motor driving a crank arm through the 270 degrees giving the gate a good mechanical advantage. The 270 degree drive mechanism together with an electro-magnetic brake, locks the gate in both open and closed positions.

The PAS 68 Bi-Folding Gates are easily interfaced with any access control system and manufactured to a maximum width of 4.2 metres. Each gate can be supplied with aesthetics to suit the environment it is installed.
