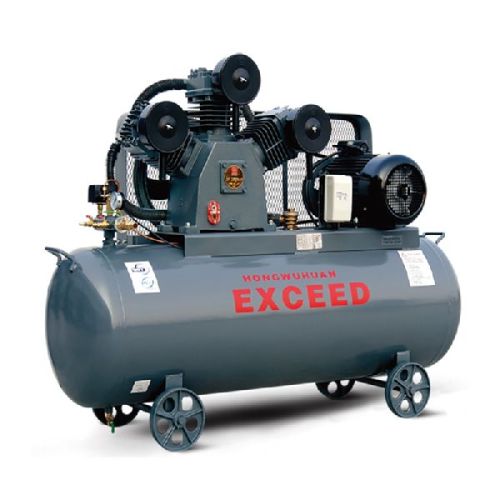

HW20012 Max 14bar Portable Piston Air Compressor

Hw20012 max 14bar portable piston air compressors are volumetric reciprocating compressors.max 14bar piston air compressors can meet all kinds of air displacements.max 14bar portable air compressors are mainly applied in petroleum, chemical, mining, metallurgy, machinery, construction and other industries. Hw medium pressure series technical parameters                                                                                                                            model parameters unit hw4012 hw5512 hw7512 hw10012 hw15012 hw20012 air displacement m³/min 0.3 0.38 0.65 0.9 1.2 1.7 discharge pressure mpa 1.25 1.25 1.25 1.25 1.25 1.25 crankshaft speed rpm 880 1050 710 950 760 760 cylinder no. 2/1 2/1 2/1 2/1 2/1 2/1 cylinder diameter mm 70/55 70/55 100/80 100/80 125/100 125/100 piston stroke mm 55 55 72 72 80 110 air receiver volume l 170 170 250 320 320 500 motor power kw 3 4 5.5 7.5 11 15 cooling method air cooling whole weight kg 200 225 305 335 487 582 length mm 1340 1360 1670 1690 1740 1840 width mm 470 510 500 530 590 640 height mm 980 1020 1090 1260 1350 1460 certificates.
