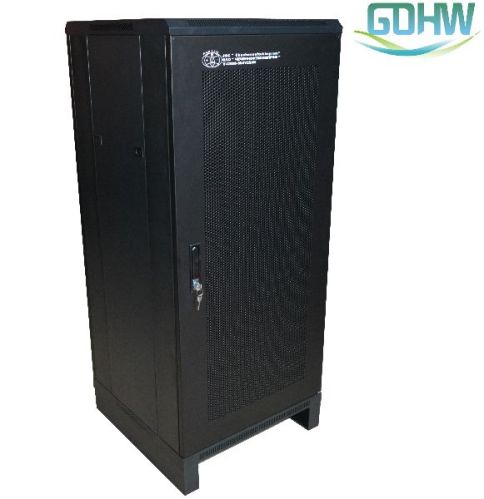

GDHW HWB Luxurious Detachable Network Server Cabinet

1. Quality SPCC cold rolled steel sheet 1.2 – 2.0 mm thickness.

2. Detachable design, convenience for assembly and transportation

3. Front and rear high density perforated door (single door/double door for

rear), model A has perforated (78.8%) front door (hexagon hexagon). Model B

has round hole perforated (68.2%) metal front door, top and bottom covers

both have cable entrance

4.Lift off type side doors with quick release catch & cam lock, top cover with

2-4 fans,    interior width meets the Chinese Standard 19'', Devices are

adjustable vertically(by 1U = 44.45mm),and also can be adjusted forward and

backward. More strengthened Frame is designed separately from front and

rear part.

5. High-duty casters and levelling feet at the bottom, move handy

6. Advanced design idea, consummate manufacture skill, delightful appearance，

stable structure, static loading capacity is up to 750 kg

7. There are interior trays of the cabinet which can be adjusted forward and

backward, up and down.(sliding trays are optional), and four adjustable vertical

rails.

8. Customizable for different specifications and interior of cabinet

9. Mainly apply to management for high-performance professional IT devices,

telecommunications, security system, major IDC data centres. Our clients are

generally from Occident presently
