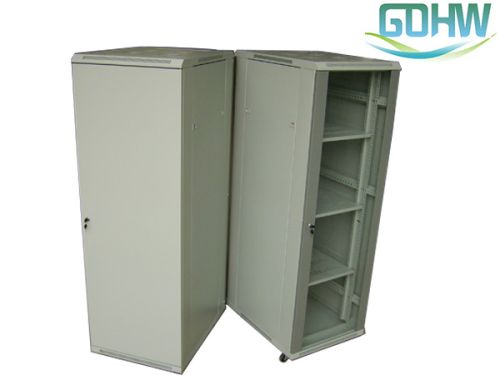

GDHW HWC General Detachable Network Sever Cabinet

1. Detachable design, convenient for assembly and transportation

2. Front tempered glass door of 5mm thickness, rear iron door, top and

bottom covers both have cable entrance

3. We apply SPCC cold rolled steel sheet of 1.0 – 2.0mm.

4. Lift off type side doors with quick release catch & cam lock, top cover with

2-4 fans,    interior width meets the Chinese Standard 19'', Devices are

adjustable vertically(by 1U = 44.45mm),and also can be adjusted forward and

backward. More strengthened Frame is designed separately from front and

rear part.

5. Advanced design idea, consummate manufacture skill, delightful

appearance，stable structure, static loading capacity is up to 500 kg

6. Casters and levelling feet at the bottom, move handy

7. Customizable for different specifications and interior of cabinet

8. There are interior trays of the cabinet which can be adjusted forward and

backward, up and down. (sliding trays are optional), and four adjustable

vertical rails.

9. Mainly apply to management for high-performance professional IT devices,

telecommunications, security system, major IDC data centres. Our clients are

generally from Occident presently
