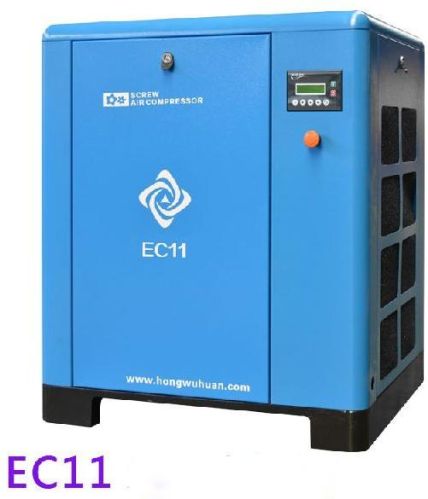

HWH EC11 Belt 11kw Screw Air Compressor

Hongwuhuan air compressors vertical straight-through intake structure makes the intake pressure loss minimum. Special strength air inlet sealing material ensures super long service life and no wearing parts. And aluminum case makes the weight lighter.twin screw air compressors are not only advanced in technology but also fully mature in practice and have been widely used in a great many applications.  ec series technical parameters                                                                                                             model parameters ec7t ec7 ec11 ec15 ec22d ec37d ec55d air displacement m³/min 1.15 1.15 1.62 2.3 3.6 6.1 10.2 discharge pressure mpa 0.8 compressed stage single motor power kw 7.5 7.5 11 15 22 37 55 motor speed rpm 2950 power supply v/p/hz 380/3/50 start mode direct start y-△ drive mode belt drive direct drive air inlet size g3/4" g3/4" g3/4" g1" g1" g1-1/2'' g2" cooling method air cooling length mm 1165 705 905 905 1180 1340 1600 width mm 725 600 745 745 800 900 970 height mm 1170 950 1055 1055 1100 1240 1450 net weight kg 250 210 290 310 500 780 1300 certificates.
