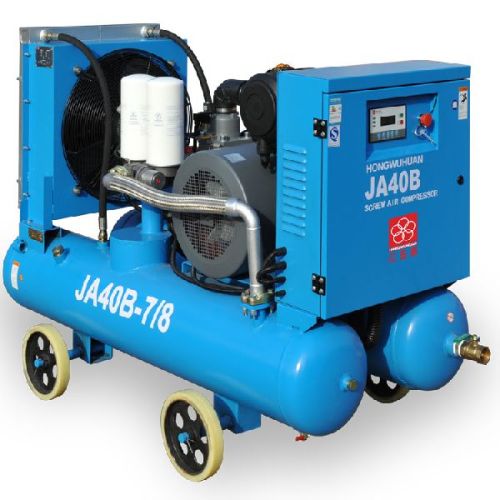

HWH JA40B 45kw Portable Screw Air Compressor

Hongwuhuan ja40b 45kw portable electric screw air compressors` open-type structure makes installment ,maintenance, field-switching convenient. Large capacity oil and gas cylinder, large capacity compressed air tank, direct connection can be used. Products have passed the national general machinery products certification center energy certification. Ja&jac engineering series technical parameters                                                                                                                       model parameters ja30b ja40b jac30a air displacement m³/min 4.8 7 5 discharge pressure mpa 0.8 0.8 0.8 compressed stage single single single drive power kw 30 45 40 power supply v/p/hz 380/3/50 380/3/50 ∕ start mode y-△ y-△ electric start drive mode belt drive belt drive direct drive air outlet pipe g1-1/4'' g1-1/2'' g1-1/2'' cooling method air cooling air cooling air cooling length mm 1520 1840 1960 width mm 820 880 830 height mm 1060 1200 1170 net weight kg 600 1000 800 certificates                             &nbs.
