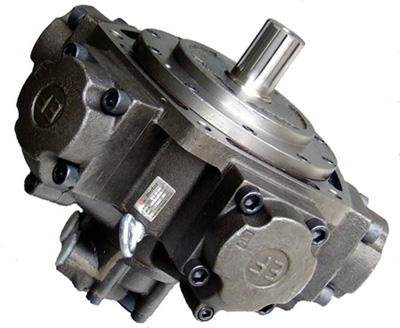

HWM Hydraulic Motor

Type
HWM 排量Displacement 额定压力Cont.pressure 额定扭矩Ratqe.torue 单位理论矩Theoric.torque 转速范围Speed.range 重量
Weight
mL/r MPa N•m N•m/MPa r/min kg
HWM 1-63 64 25 237 9.5 15~1250 22
HWM 1-80 78 25 300 12 15~1000
HWM 1-100 96 25 355 14 15~1000
HWM 1-125 126 20 371 19 15~1000
HWM 1-160 159 16 374 23 15~1000
HWM 2-100 113 25 419 17 15~1250 28
HWM 2-150 159 25 588 24 15~1000
HWM 2-175 180 20 532 27 15~1000
HWM 2-200 207 20 611 31 8~800
HWM 2-250 235 16 556 35 8~630
HWM 2-280 276 16 653 41 8-500
HWM 3-200 201 25 743 30 8~800 36
HWM 3-250 254 20 752 38 8~630
HWM 3-300 289 20 856 43 6~500
HWM 3-350 340 20 1000 50 6~400
HWM 3-400 380 18 1008 56 6~350
HWM 6-400 397 25 1469 59 5~630 58
HWM 6-450 452 25 1672 67 5~630
HWM 6-500 491 20 1451 73 5~500
HWM 6-600 594 20 1756 88 4~500
HWM 6-700 683 16 1616 101 4~400
HWM 6-750 754 16 1785 112 4~320
HWM 8-600 617 25 2282 91 4-500 72
HWM 8-700 710 25 2626 105 4-400
HWM 8-800 810 20 2396 120 4-400
HWM 8-900 889 20 2629 131 3-350
HWM8-1000 1000 16 2366 148 3-300
HWM11-700 707 25 2612 104 4~400 94
HWM11-800 784 25 2899 116 4~400
HWM11-1000 981 20 2902 145 4~320
HWM11-1100 1104 20 3265 163 3~320
HWM11-1200 1234 16 2919 182 3~320
HWM11-1300 1301 16 3079 192 3~250
HWM16-1400 1413 25 5224 209 2~400 170
HWM16-1600 1648 20 4874 244 2~400
HWM16-1800 1815 20 5367 268 2~350
HWM16-2000 2035 18 5416 301 2~320
HWM16-2400 2267 16 5464 335 2~250
HWM16-3000 3041 16 7326 483 2-200
HWM31-2500 2550 25 9404 376 5~250 298
HWM31-2800 2826 25 10422 416 5~200
HWM31-3000 3063 20 9009 450 5~200
HWM31-3150 3218 20 9466 473 5~200
HWM31-3500 3561 20 10474 524 5~160
HWM31-4000 4153 20 12216 610 5~160
HWM31-5000 4828 16 11361 710 5~160
HWM100-6300 6770 20 20021 1001 0.5-125 700
HWM100-8000 8298 20 24541 1227 0.5-125
HWM100-10000 9982 16 23617 1476 0.5-100
