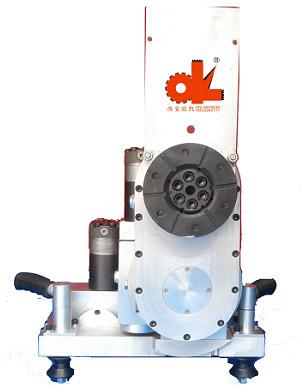

Hydraulic wall saw HWS-600TM
OUKAI new heavy duty full hydraulic swivel arm wall saw with automatic feeding and downfeeding regulation and self-adjustable roller guide system for cutting depths up to 710 mm
Other features
Torsion-free tracks in different lengths to guarantee an exact and vibration-free operation of the saw unit.
The 360 ° devoting arm guarantees the full utilization of the tracks.
The guiding system on rolls allows maximum accuracy while cutting with very low wear of the rolls.
The remote control guarantees convenient and safe operation.
Techincal data
1.Specification
Max start up blade diameter: 800mm
Max using blade diameter: 1600mm
Max cutting depth: 710mm
2.Wall Saw head
Output axle diameter: 60mm
Max working pressure: 200bar
Max fuel flow: 80Lmin
Blade cutting method: Automatic
Speed of blade:5009001400rpm
Weight: 28kg
3.Hydraulic power unit
Input power: 25kw
Voltage: 380V400V,3-phase ,50HZ
Control method: Hydraulic automatic
Weight (include Oil):165kg
Dimensions(L*B*H): 65*60*100 cm
