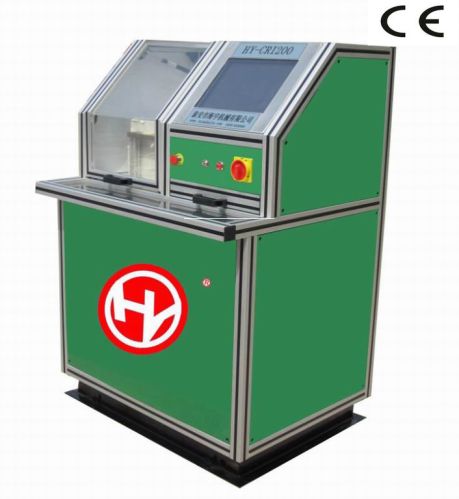

Hy-cri 200 High Pressure Common Rail Injector Test Bench

We are offering hy-cri 200 high pressure common rail injector test bench.
hy-cri200 high pressure common rail injector pump test bench specification details
1. main engine system
a. quadrupole electric motor (380v) 5.5kw
alpha frequency converter 7.5kw
b. the main frame is aviation aluminum structure and cast iron operating platform.
c. its control type is automatically computer control and display by screen.
d. the accuracy of weighing oil digital readout (weighing transducer) is 0.1ml.
e. its revolving speed range is 0~1500r/min (adjustable) (digital readout).
2. oil circuit system
a. the high pressure pump is bosch cp3.3, max 200mpa.
b. rail pipe is bosch.
c. the rail pipe is controlled by automatically closed cycle, and pressure display (accuracy±0.1mpa) with overpressure protection.
d. oil temperature (adjustable) is controlled automatically, heated by heating pipe and radiated though radiator.
e. its filtering type is secondary filter.
3. electrical equipment
a. it has built-in electrical box and converter box.
b. short-circuit protection.
4. data base
a. it has more than 400 kinds of standard build-in data, which can be upgraded.
5. testing fuel injector
a. it can test 1 fuel injector every time.
b. it can test 6 fuel injectors at most in the same time (price is extra).
c. the types it can test are bosch, denso, delphi, and siemens.
6. overall dimension
length: 1000mm, width: 850mm, height: 1430mm
7. weight
net weigh: 400kg.
