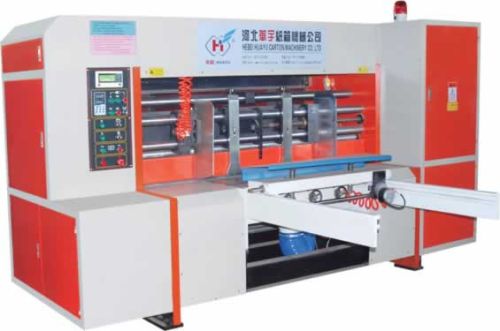

HY-QM Rotary Die Cutting Machine, For Industrial

Product Details :

• The feeding unit adopt vacuum suction lead edge feeding system, increase the feeding speed and decrease the rate of cardboard blocking when using back-kick feeding system.
• High pressure centrifugal fans auxiliary feed the cardboard to ensure the The absorption force can be adjustable to different cardboard thickness and dimension.
• Frequency converter control the force, make sure the smoothly feeding .Ultra-thin feeding function, Even 2mm thickness cardboard can be used.
• Front bar is adjusted manually . Right bar is electrically adjusted. Left bar own the function of pneumatic flapping. Adjusting of the back bar ( left ,right,up and down) is manual, convenient , fast and precise.
• PLC control, unite control panel on control desk, simple and clear , convenient and swift. The main motor apply the frequency converter controling the speed, start smoothly and adjust the speed according the user.
• Equipped with the number counter , easy and clear for production. Start with the alarm bell ring, more safety.
• The wall panel applies supper quality Cast Iron , 50mm thickness, down feeding roller is made by high quality steel with balance alignment and hard chrome plated.
• Upper feeding roller is covered by wearable rubber , long life span. Flexible channel on the surface of the rubber roller, ensuring the precise of feeding without damage the cardboard.
• Die cutting roller is objected to balance alignment and hard chrome plate. Supper quality steel.
• With compensating gear device in phase adjusting, digital display and control with adjusting in 360 degree both running and stop.
• When feeding ,die cutting roller pneumatic up and touch the rubber roller ; when stop , it automatic down and separate with the rubber roller, saving using time of the rubber roller.
• The rubber applies Taiwan Youli polyurethane rubber, smooth cutting, and easy installation , can be used for 8000,000 times. Mechanical left and right moving device(40mm) for rubber roller: each cutting in different place, prolong the using life of the rubber roller effectively.
• Speed automatic compensating device make sure that all the boxes are the same size.The soft roller self-repairing device raising the rate of reuse.
• All the transmission gears are helical tooth, smooth transmission , little noise, with the materials of supper quality carbon structural steel,after heating treatment and high frequency hardening , HRC45-50, high wearable and long lifespan.
• Spray lubrication system , simple and effective.
