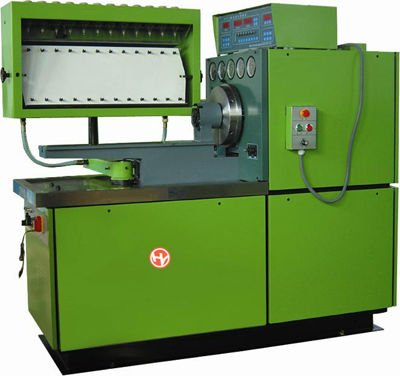

Hy-wk Diesel Fuel Pump Test Bench(LED Display)

1. power: 11kw,stepless frequency converter
2. voltage: three phase four wire, 380v
3. filtering precision: 10um.
4. revolving speed: 50~4000r/min.
5. fuel pressure: low pressure: 0~0.4mpa
high pressure: 0~4mpa
6. testing types: mechanical injection pump.
7. display: instrument display(digital display)
8. function:
a. Debugging the uniformity and quantity of the oil supply of each cylinder in injection pump
b. Debugging the test point and interval angle of oil supply of injection pump
c. Debugging the performance of different speed governor
d. Checking the tightness of injection pump
e. testing the quantity of oil return of distribution (dispensing)pump
f. checking pressure compensator of distribution (dispensing)pump
g. measuring the pressure of pump chamber
h. measuring the advance angel
i. measuring the travel of gear lever
