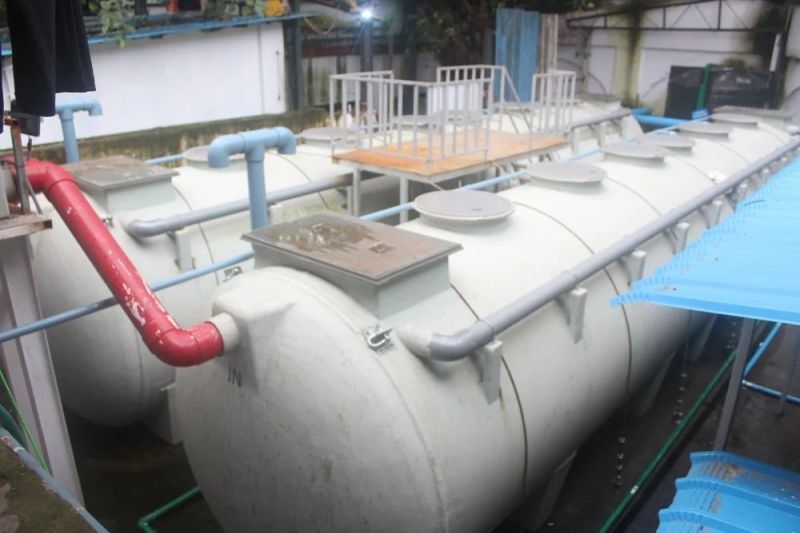

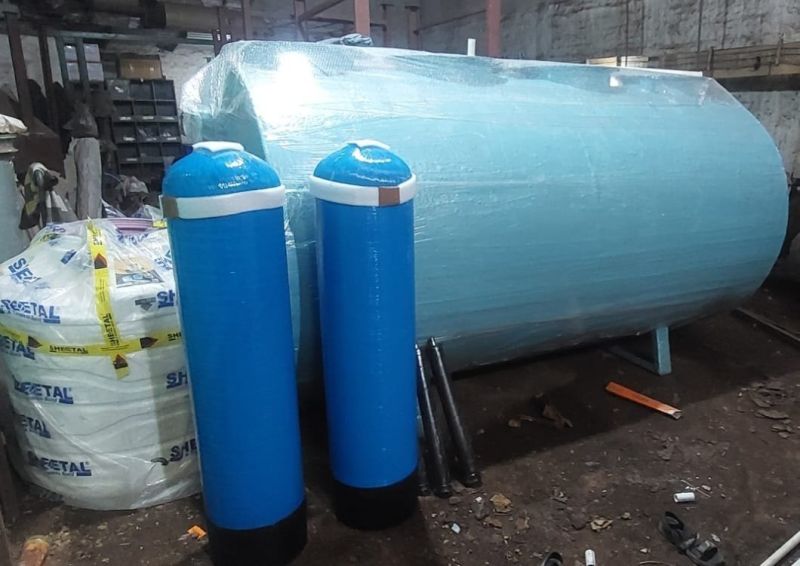

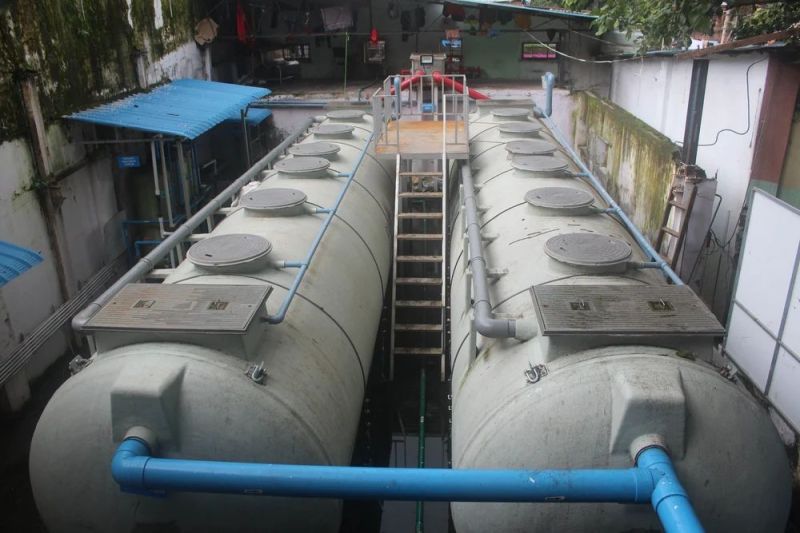

Hybrid Capsule Type 1-2 Kld Sewage Treatment Plants

The Hybrid Capsule Type Sewage Treatment Plant (STP) with a capacity of 1-2 KLD by is a compact, semi-automatic, fully equipped system designed for small residential, commercial buildings, and institutional wastewater treatment.

Key Specifications and Features:

• Capacity: 1 to 2 Kiloliters per day (KLD).

• Construction: Mild Steel (MS) body with 3 mm Fiber Reinforced Plastic (FRP) coating on both inner and outer surfaces, providing corrosion resistance and durability suitable for outdoor installations.

• Design: Capsule-shaped, skid-mounted, plug-and-play unit requiring minimal civil work.

• Treatment Technology:

  • Hybrid Process: Combines Moving Bed Biofilm Reactor (MBBR) biological treatment with advanced physical and chemical filtration techniques.

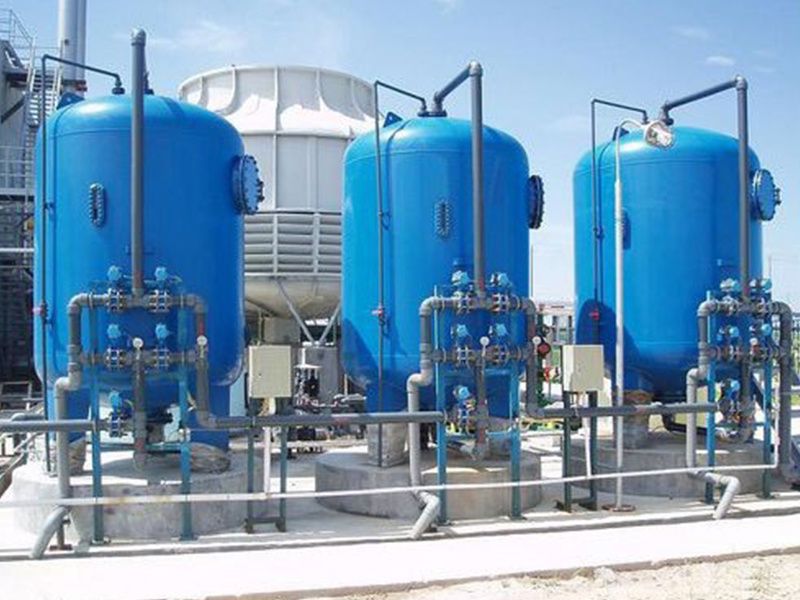

  • Multi-Grade Filter (MGF), Activated Carbon Filter (ACF), and Micron Filter for polishing and removal of turbidity, odor, and organic contaminants.

  • Hypo (Chlorine) Dosing System for disinfection.

  • pH Adjustment System for maintaining optimal treatment conditions.

  • Filter Feed Tank, Air Blowers, Sewage Pump, Filter Feed Pump, Electrical Control Panel, Flow and Water Meter included.

  • Filter Press (optional based on capacity) aids sludge dewatering and water recovery.

  • UV Disinfection Unit for pathogen removal.

  • Optional Ultrafiltration (UF) system available for sensitive reuse applications.

• Automation: Semi-automatic with control modules to provide easy operation, monitoring, and minimal manual interference.

• Power Consumption: Approximately 0.25 kW blower power and integrated system power-efficient.

• Water Quality Post-Treatment:

  • BOD, COD, and TSS significantly reduced to meet CPCB/SPCB discharge norms.

  • Produces treated water suitable for gardening, flushing, and other non-potable uses.

• Advantages:

  • Reduces sludge cleaning frequency, up to several months apart.

  • Requires minimal civil construction work.

  • Eco-friendly and supports green building certifications.

  • Compact footprint ideal for space-constrained areas.

• Warranty: Typically 1-2 years on components.

• Applications:

  • Residential complexes, small hotels, villas, schools, and small commercial setups.

  • Institutions requiring advanced, compact sewage treatment solutions.

Summary Table

This Hybrid Capsule Type STP provides a modern, integrated wastewater treatment solution focusing on space efficiency, ease of operation, reduced maintenance, and treated water reuse capabilities for small scale sewage treatment needs.
